Marine Fluorescent Mirror Light
Marine Fluorescent Mirror Light

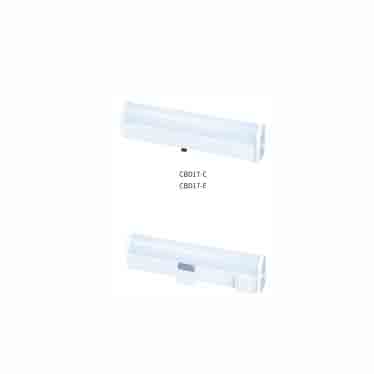

- Product Images and Diagrams: The image displays multiple models of fluorescent mirror lights (CBD017 – C, CBD017 – E, CBD017 – D, CBD017 – F, etc.) with front – view photos and technical diagrams showing their dimensions (length L and L1, etc.).
Main Technical Parameters
| Parameter | Description |
|---|---|
| The scope of application | Applied to illumination of such wet places as sidewalk, washroom, bathroom, sailors’ rest room, etc. on various ships. |
| Model/Type | CBD017 – C, CBD017 – E, CBD017 – D, CBD017 – F, CBD017 – DL, CBD017 – EL, CBD017 – FL |
| Rated Voltage | 110V/60Hz, 220V/50Hz, 220V/60Hz, 85 – 265V (varies by model) |
| Power | CBD017 – C: 1X15W; CBD017 – E: 1X20W; CBD017 – D: 7W; CBD017 – FL: 9W (etc., as per the table) |
| Luminous Flux | CBD017 – C: 400lm; CBD017 – E: 500lm; CBD017 – D: 400lm; CBD017 – FL: 500lm (as per the table) |
| Color Temperature | 6500K |
| Protection Class | IP34 |
| Cable Outside Diameter | Φ8 – Φ10 |
| Ambient Temperature | -25℃ – +45℃ |
| Lamp Body Material | Aluminum (original “铝型材 Aluminum”) |
| Lampshade Material | Lampshade adopts PMMA (acrylic – like material, as per the text “灯罩采用PMMA压塑成型 Lampshade adopts PMMA”) |
| Lampshade Color | Milky white (original “乳白色 Milky white”) |
| Weight | CBD017 – C: 1.5KG; CBD017 – E: 1.7KG; CBD017 – D: 2.3KG; etc. (as per the table, and all models mentioned have socket as per the remark) |
Remarks
All models listed come with a socket as indicated in the remarks section.
Attention please: The description may be different with the product, please contact us for quotation.
