MARINE FIRE RESISTANCE SERVICE WINDOW
CB*3288—87
261_YHS—010
USED FOR GALLEY, PANTRY, STORE AND SHOP ETC.

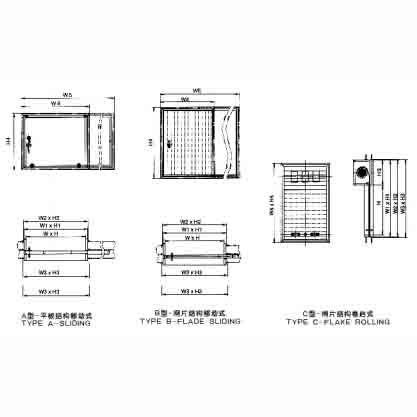

TYPE A—SLIDING
TYPE B—FLADE SLIDING
TYPE C—FLADE ROLLING
表格
| TYPE | CLEAR SIZE
W×H |
CUTOUT SIZE
W2×H2 |
FRAME SIZE
W1×H1 |
FRAME SIZE
W3×H3 |
FRAME SIZE
W4×H4 |
RAIL LENGTH
W5 |
FRAME WIDTH
B |
FRAME WIDTH
B1 |
FRAME WIDTH
B2 |
WEIGHT
KG (STEEL) |
WEIGHT
KG (ALUMINUM) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 600×500 | 686×586 | 680×580 | 750×610 | 750×610 | 1350 | 200 | 180 | 120 | 21.8 | 12.7 |
| A | 800×630 | 886×716 | 880×710 | 950×740 | 950×740 | 1800 | 200 | 180 | 120 | 28.4 | 17.7 |
| A | 1100×800 | 1186×886 | 1180×880 | 1250×910 | 1250×910 | 2300 | 200 | 180 | 120 | 47.2 | 31.7 |
| A | 1400×1000 | 1486×1086 | 1480×1080 | 1550×1110 | 1550×1110 | 2800 | 200 | 180 | 120 | 62.6 | 41.1 |
| B | 1600×1000 | 1686×1086 | 1680×1080 | 1750×1110 | 1750×1110 | 3000 | 250 | 180 | 120 | 75.2 | 50.7 |
| B | 1800×1000 | 1886×1086 | 1880×1080 | 1950×1110 | 1950×1110 | 3200 | 250 | 180 | 120 | 90.2 | 59.7 |
| C | 2000×1200 | 2086×1286 | 2080×1280 | 2150×1310 | 2150×1310 | 4800 | 300 | 200 | 120 | 148.8 | 76.5 |
IDENTIFICATION EXAMPLE:
SLIDING FIRE PROOF SERVICE WINDOW WITH CLEAR SIZE OF 1100×800
FIVEPROOF SERVICE WINDOW A1100×800 CB*3288-1987
Note: The description may be different with the product, please contact us for quotation.
