Marine Electric Horn

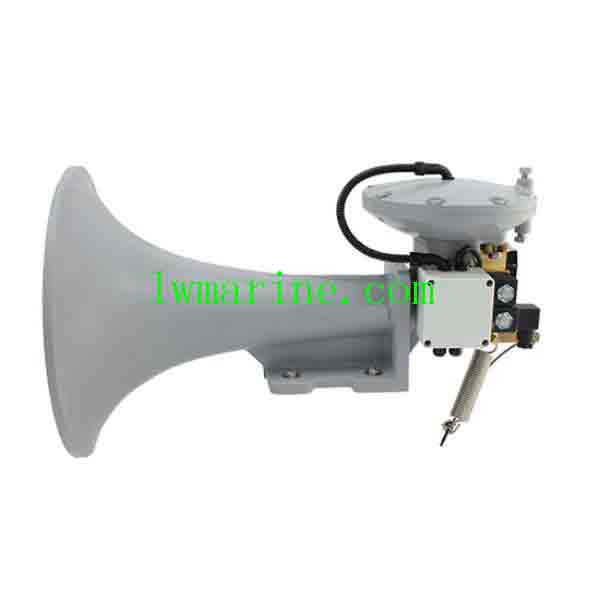

Marine Electric Air Horn

Description:

A Marine Electric Air Horn is an advanced signaling device specifically designed for marine applications, producing a loud, distinct sound for effective communication and warning purposes. Powered by electricity, this horn system typically comprises a compressor, a diaphragm or trumpet, and a control panel. The compressor serves as the core of the system, drawing in air, compressing it, and then sending it to the diaphragm or trumpet. The diaphragm or trumpet amplifies the compressed air, generating a powerful sound. The control panel enables the operator to easily activate and adjust the horn’s sound, ensuring precise signaling in various scenarios.

Marine Electric Air Horns can be tailored to produce different sound frequencies and output levels, offering versatility in marine signaling. Compared to pneumatic or hand-operated air horns, they generally boast a longer service life and require relatively simple installation and maintenance. These horns are widely utilized on commercial and industrial vessels, as well as pleasure boats, for signaling other boats or in emergency situations. Their reliability and ease of operation make them a preferred choice over other types of air horns.

Certificate & Standard:

Certificate: CCS (China Classification Society)
Standard: Complies with Rule 35, 36 of COLREG 1972 and SOLAS; IMO A.1021(26) Resolution 2009 Alarm and Indicator Rules, and the 1972 International Maritime Regulations for Preventing Collisions, Appendix 3, Article 1 requirements, etc.

Application:

Vessel Size Suitability: Ideal for vessels with a length ranging from more than 75 meters to less than 200 meters.
Alerting Other Vessels: Used to signal maneuvering intentions or warnings of danger to other boats and ships.
Navigation and Collision Avoidance: In congested waters like harbors or shipping lanes, these horns signal to avoid collisions.
Emergency Situations: Sound distress signals or call for assistance in emergencies.
Docking and Mooring: Signal dock and mooring personnel about the vessel’s arrival or departure.

Working Principle:

Marine Electric Air Horns operate on the principle of electromagnetism. The horn contains a diaphragm made of flexible material such as metal or plastic, attached to an electromagnet. When an electric current passes through the coil, it creates a magnetic field that pulls the diaphragm towards it, causing it to vibrate and produce sound waves. The frequency and volume of the sound can be adjusted by changing the electric current’s strength or the diaphragm’s tension. The resulting sound is typically loud and clear, making it an effective signaling device for marine communication.

FAQs:

Q: What makes Marine Electric Air Horns suitable for marine applications?
- A: Marine Electric Air Horns are specifically designed to withstand harsh marine environments, producing loud and distinct sounds for effective communication and warning purposes. Their electric-powered operation ensures reliability and ease of use.
Q: How do Marine Electric Air Horns differ from pneumatic or hand-operated air horns?
- A: Marine Electric Air Horns typically have a longer service life, are easier to install and maintain, and offer more precise sound control compared to pneumatic or hand-operated air horns. They are also more reliable in various weather conditions.
Q: Can Marine Electric Air Horns be customized for different sound frequencies and output levels?
- A: Yes, Marine Electric Air Horns can be tailored to produce different sound frequencies and output levels, allowing for versatile signaling in various marine scenarios.
Q: What are the key components of a Marine Electric Air Horn?
- A: The key components include a compressor, a diaphragm or trumpet, and a control panel. The compressor compresses air, which is then amplified by the diaphragm or trumpet to produce sound. The control panel allows for easy activation and adjustment of the horn’s sound.
Q: Are Marine Electric Air Horns compliant with international maritime regulations?
- A: Yes, Marine Electric Air Horns comply with international maritime regulations such as COLREG 1972 and SOLAS, ensuring they meet the necessary safety and signaling standards for marine applications.
