Marine Dry Spark Trap & Silencer

Marine Dry Spark Trap & Silencer

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Marine Dry Spark Trap & Silencer VTJZ Series

Application
This series product is most suitable for exhaust gas lines of main engine and auxiliary engine and boiler, which ships are transferring the raw petroleum, petroleum oil and chemical-liquid etc. It can arresting spark and muffle.

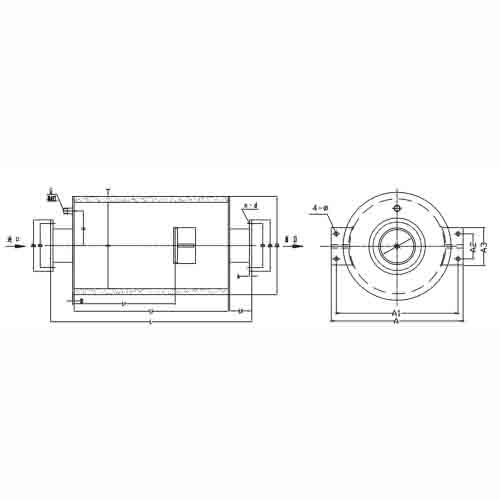

Structure Pattern and Main Dimensions
See Fig.1 & Table 1.

Table 1

Nominal Diameter L L1 L2 D D1 D2 D3 D4 t n d b G H A A1 A2 A3 B L3
VTJZ-65 710 530 80 290 123 155 380 45 6 17 12 1″ 110
VTJZ-80 800 620 80 300 138 170 400 50 8 17 12 1″ 110
VTJZ-100 860 680 80 350 158 190 450 50 8 17 12 1″ 130
VTJZ-125 960 780 80 400 183 215 500 50 10 17 12 1″ 150
VTJZ-150 1060 860 80 450 208 250 550 50 12 17 14 1″ 175
VTJZ-175 1160 880 80 500 238 270 600 50 12 17 14 1″ 200
VTJZ-200 1360 900 80 550 260 300 650 50 12 17 14 1″ 200
VTJZ-250 1560 1000 80 600 280 320 700 50 12 17 14 1″ 200
VTJZ-300 1760 1100 80 650 300 340 750 50 12 17 14 1″ 200
VTJZ-350 1960 1200 80 700 320 360 780 50 12 17 14 1″ 200
VTJZ-400 2160 1300 80 750 340 380 800 50 12 17 14 1″ 200
VTJZ-450 2360 1400 80 800 360 400 820 50 12 17 14 1″ 200
VTJZ-500 2560 1500 80 850 380 420 840 50 12 17 14 1″ 200

Note: The description may be different with the product, please contact us for quotation.
