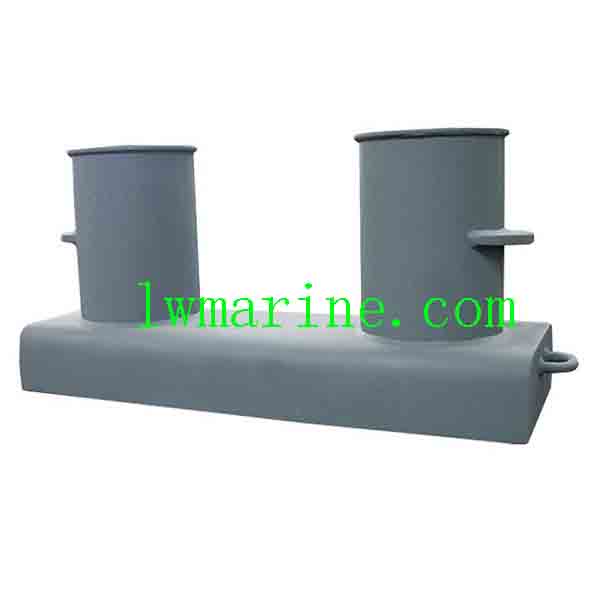

Marine Casting Steel Double Mooring Bitts Bollards DIN82607 for Ship
Our Marine Double Mooring Bitts Bollards are expertly designed in compliance with the DIN82607 standard, ensuring top-notch quality and reliability for maritime applications. These bollards feature two robust steel tubes securely fitted into a common reinforced steel base, providing exceptional strength and stability. The design includes two ridges to prevent ropes from shifting and a rope stopper (also known as a stopper lug) for added security. Additionally, upon customer request, our double mooring bitts can be supplied with a warping roller for enhanced functionality.
The tubes penetrate the base plate, and reinforcement plates are integrated into the base, eliminating the need for foundation construction to penetrate the deck. This feature simplifies installation and ensures a secure, long-lasting mooring solution.
All our DIN82607 Marine Double Bollards undergo standard sandblasting and are coated with one layer of shop primer. For added protection, galvanized finishing is available as an option, ensuring durability even in harsh marine environments.
Our Marine Double Bitts are capable of handling towing forces ranging from 10T to 200T, making them suitable for various shipyards, docks, and marine applications along the Panama and European seaboards. We offer custom painting options to meet customer requirements, along with prompt delivery and certification from reputable organizations such as ABS, CCS, BV, NK, KR, DNV, and LR.
We guarantee competitive pricing without compromising on quality. Our products have gained significant popularity in both domestic and international markets, and we are eager to collaborate with you to create a prosperous future with mutual benefits.
If you are interested in our Steel Mooring Bitts, please feel free to send an inquiry or contact our sales team directly. We will promptly handle your case and provide you with a competitive quote.
Technical Specifications
| Size | Rated Towing Force (kN) | Tube Dimensions (D1 x Thickness) | B (mm) | D2 (mm) | E (mm) | H1 (mm) | H2 (mm) | S2 (mm) | A (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| D1 | 10 | 139.9×6.3 | 130 | 160 | 430 | 370 | 105 | 5 | 4 | 20.6 |
| D2 | 20 | 219.1×8 | 180 | 242 | 570 | 475 | 115 | 6 | 4 | 52.3 |
| D3 | 32 | 273.0×10 | 250 | 300 | 700 | 570 | 135 | 8 | 5 | 99.5 |
| D5 | 50 | 323.9×10 | 300 | 355 | 880 | 670 | 150 | 8 | 6 | 145.4 |
| D8 | 80 | 355.6×14.2 | 330 | 390 | 1050 | 780 | 175 | 10 | 8 | 259.4 |
| D12 | 120 | 457.0×16 | 420 | 490 | 1200 | 860 | 195 | 16 | 12 | 437.0 |
| D20 | 200 | 508.0×17.5 | 470 | 545 | 1350 | 970 | 230 | 16 | – | 571.0 |
| D32 | 320 | 559.0×20.0 | 530 | 600 | 1400 | 1000 | 270 | 16 | – | 830.0 |
FAQs
Q1: What makes your Marine Casting Steel Double Mooring Bitts Bollards suitable for harsh marine environments?
A1: Our bollards are designed with durability in mind, featuring standard sandblasting, a layer of shop primer, and an optional galvanized finish for added protection against corrosion and wear.
Q2: Can your Marine Double Bitts be customized to meet specific requirements?
A2: Yes, we offer custom painting options and can supply our double mooring bitts with a warping roller upon request, ensuring they meet your specific needs.
Q3: What certifications do your Marine Double Mooring Bitts Bollards come with?
A3: Our bollards are certified by reputable organizations such as ABS, CCS, BV, NK, KR, DNV, and LR, ensuring compliance with international standards and regulations.
Q4: What is the towing force range of your Marine Double Bitts?
A4: Our Marine Double Bitts can handle towing forces ranging from 10T to 320T, making them suitable for a wide range of marine applications.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
