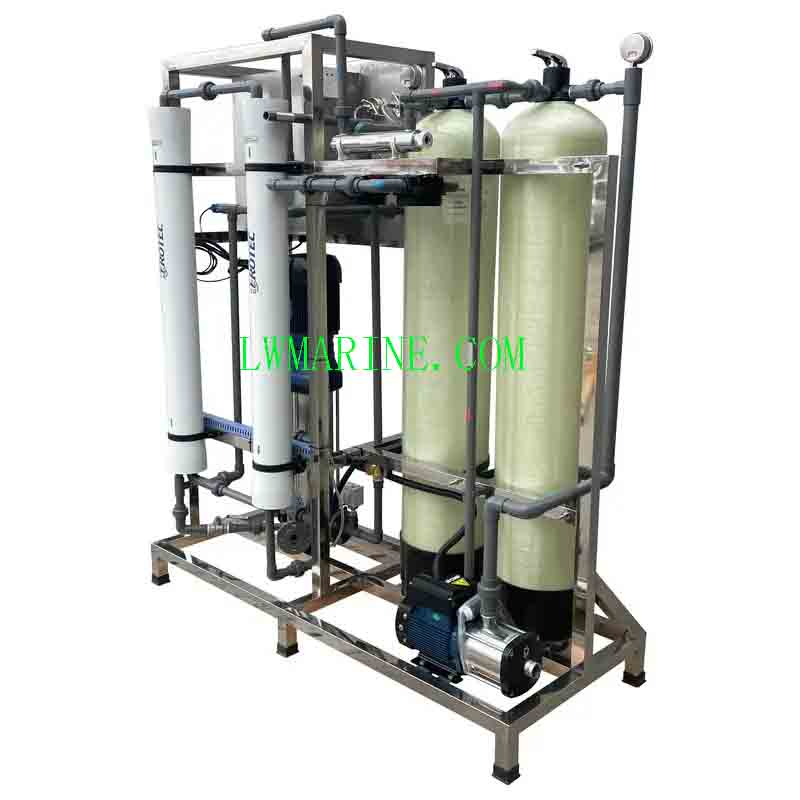

Marine Desalination Plant | 30 m³/Day Reverse Osmosis System for Ships & Offshore Use
High-Efficiency Sea Water Desalination System for Marine Freshwater Production
Our Marine Desalination Plant delivers reliable, high-quality freshwater production through advanced reverse osmosis technology. Designed specifically for marine and offshore applications, this system efficiently processes seawater with salinity up to 38,000 ppm, producing up to 30 m³ of fresh drinking water daily that complies with WHO standards (TDS ≤500 ppm).
Built with premium corrosion-resistant materials and featuring comprehensive automation and protection systems, this desalination plant ensures operational reliability and minimal maintenance in the most demanding marine environments.
Key Features & Benefits:
-
Premium RO Technology: Single-stage reverse osmosis with ≥99% desalination rate
-
Intelligent Protection Systems: Automatic shutdown for over-pressure (≥6.5 MPa) and low inlet pressure (≤0.05 MPa) conditions
-
Semi-Automatic Maintenance: Compressed-air-accelerated sand filter backwashing system
-
Real-Time Monitoring: Online conductivity meter and comprehensive instrumentation for continuous performance tracking
-
Marine-Grade Materials: SS316, glass fiber, and PPR components for corrosion resistance
-
Compact & Robust Design: Optimized footprint for easy installation aboard vessels and platforms
Technical Specifications:
| Parameter | Specification |
|---|---|
| Daily Production Capacity | 30 m³/day (1.25 m³/h) |
| Raw Water Salinity | ≤38,000 ppm |
| Product Water TDS | ≤500 ppm |
| Inlet Water Temperature | 5°C to 35°C |
| Recovery Rate | ≈25% |
| Desalination Rate | ≥99% |
| Power Supply | 440VAC/60Hz/3φ (Control: 220VAC) |
| Power Consumption | ≈13.5 kW (including boost pump) |
| Operating Pressure | Up to 6.5 MPa |
| Dimensions (L×W×H) | 2000 × 1500 × 2100 mm |
| Weight (Dry/Wet) | ≈1500 kg / ≈2000 kg |
System Components & Quality Assurance:
-
Boost Pump: CHL2-40, SS316, 2.0 m³/h, 40 m head
-
Sand Filter: Φ250×1350 mm, glass fiber construction
-
Fine Filters: Dual-stage (5µm and 10µm) fiber filter cores
-
High-Pressure Pump: RT21.10 with belt drive (A750)
-
RO Membranes: 4× SW30-2540 elements
-
Membrane Housings: 4× 1000 PSI vessels
-
Monitoring & Control: Conductivity meter (0–2000 µS/cm), pressure gauges, flow meters, and automatic pressure switches
-
Piping & Materials: SS316, PPR, and UPVC for corrosion resistance
Certification & Compliance:
This system is designed to meet international marine standards and is certifiable by all major classification societies, including:
-
ABS, BV, DNV GL, KR, RINA
-
NK, USCG, CCS
The description/sizes may be different with goods, please check with us when order.
