Marine crushing pump CF Series

1. General

CF-type marine crushing pump is driven by marine motor. This pump features in integration, cutting and non clogging drain, able to cut into pieces the long fibers, paper belts and other foreign substances in the sewage before draining them out. Through unique design of pump body and impeller flow channel, the pump is widely used in light industry, paper making, textile, food, chemicals, power industry, mining, boats, urban sewage drainage and aquatic culture, the CF type marine crushing pump is the most ideal pump at present in china to deliver the medium containing solid particles, fibers, pulps and mixed suspensions.

2. Main technical parameter

No. Type Capacity (m³/h) Head (m) Speed (r/min) NPSH (m) Motor Type & Power (kW)
1 2CF25-5B / 0.5PWF-25B 5 25 2900 3.5 Y100L-2H 3.0
2 2CF25-30B / 0.5PWF-30B 5 30 2900 3.5 Y112M-2H 4.0
3 2CF25-35B / 0.5PWF-35B 5 35 2900 3.5 Y112M-2H 4.0
4 2CF10-20B / 1PWF-20B 10 20 2900 3.5 Y100L-2H 3.0
5 2CF10-25B / 1PWF-25B 10 25 2900 3.5 Y112M-2H 4.0
6 2CF15-20B / 1PWF-20B 15 20 2900 3.5 Y100L-2H 3.0
7 2CF15-25B / 1PWF-25B 15 25 2900 3.5 Y112M-2H 4.0
8 2CF20-20B / 2PWF-20B 20 20 2900 3.5 Y112M-2H 4.0
9 2.5CF5-8B / 0.5PWF-8B 5 8 2900 3.5 Y80M-2H 0.75

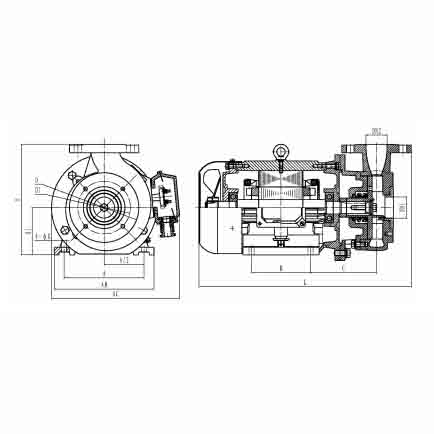

3. Contour and installation size of pump

Type A B C D E F G H I J K Φ L Φ 4-M 4-N 4-D P Φ Dg1 Φ Dg2 Φ
2CF25-5B 482 140 190 157 40 125 178 100 148 125 165 125 10 18 12 165 50 50
2CF25-30B 461 140 190 157 40 125 178 112 148 125 165 125 10 18 12 165 50 50
2CF25-35B 461 140 190 157 40 125 178 112 148 125 165 125 10 18 12 165 50 50
2CF10-20B 449 140 190 156 41 125 178 112 148 125 165 125 10 18 12 165 50 50
2CF10-25B 462 140 190 157 40 125 178 112 148 125 165 125 10 18 12 165 50 50
2CF15-20B 462 140 190 157 40 125 178 112 148 125 165 125 10 18 12 165 50 50
2CF15-25B 449 140 190 156 41 125 178 112 148 125 165 125 10 18 12 165 50 50
2CF20-20B 462 140 190 157 40 125 178 112 148 125 165 125 10 18 12 165 50 50
2.5CF5-8B 380 100 125 105.5 44.5 100 150 80 122 120 140 73 10 13 10 96 25 65
2.5CF5-10B 380 100 125 105.5 44.5 100 150 80 122 120 140 73 10 13 10 96 25 65
2.5CF5-15B 412 140 143 143 43 100 150 90 135 125 151 90 10 14 10 120 40 65
2.5CF5-20B 432 125 140 143 43 100 150 90 135 125 151 90 10 14 10 120 40 65
2.5CF10-11B 380 100 140 142 34.5 90 150 90 135 124 140 88 12 14 14 120 32 65
2.5CF10-30B 531 140 216 188 40 138 223 132 148 125 165 125 10 18 14 145 50 65
2.5CF10-31B 411 125 140 143 39 90 150 90 135 125 160 90 12 14 11 130 40 65
2.5CF10-35B 531 140 216 188 40 138 223 132 148 125 165 125 10 18 14 145 50 65
2.5CF20-30B 531 140 216 188 40 138 223 132 148 125 165 125 10 18 14 145 50 65
3CF40-30B 531 140 216 188 40 138 223 132 148 160 195 125 10 18 14 145 50 65
3CF40-50B 531 140 216 188 40 138 223 132 148 160 195 125 10 18 14 145 50 80
3CF20-35B 531 140 216 188 40 138 223 132 148 160 195 125 12 14 14 145 50 80
3CF20-50B 531 140 216 188 40 138 223 132 148 160 195 125 12 14 14 145 50 80
3CF40-20B 531 140 216 188 40 138 223 132 148 160 195 125 12 14 14 145 50 80
3CF40-25B 531 140 216 188 40 138 223 132 148 160 195 125 12 14 14 145 50 80
3CF30-15B 210 210 254 243.5 57 160 241.5 160 200.8 160 195 125 12 14 14 170 50 80
3CF30-35B 210 210 254 243.5 57 160 241.5 160 200.8 160 195 125 12 14 14 170 50 80
3CF30-50B 682 210 254 243.5 57 160 241.5 160 200.8 160 195 125 12 14 14 170 50 80
3CF40-50B 726 254 254 243.5 57 160 241.5 160 200.8 160 195 125 12 14 14 170 50 80
3CF50-50B 726 254 254 243.5 57 160 241.5 160 200.8 160 195 125 12 14 14 170 65 80
3CF60-50B 726 254 254 243.5 57 160 241.5 160 200.8 160 195 125 12 14 14 170 65 80

Note: The description may be different with the product, please contact us for quotation.
