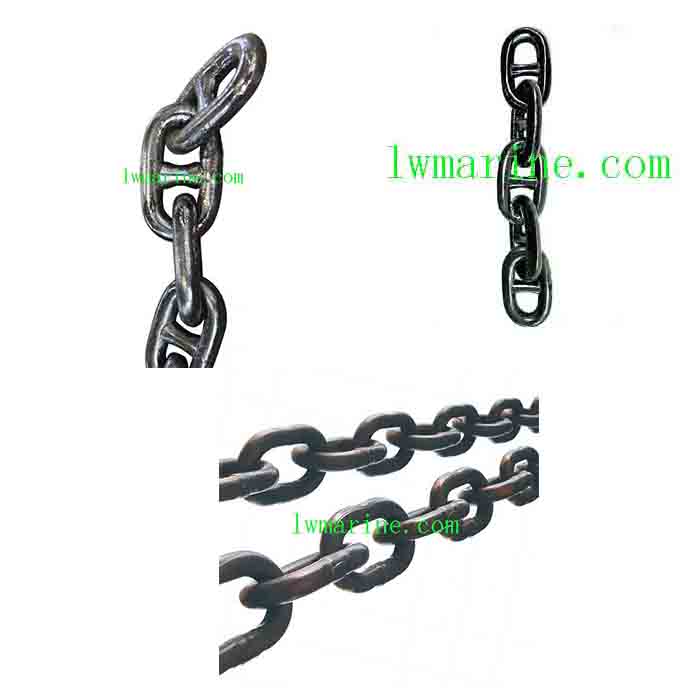

Marine Chain Cables – High-Performance Anchoring Solutions
Secure & Reliable Connection Between Vessel and Anchor
Our marine chain cables are engineered for maximum holding power and durability, ensuring safe mooring in all marine conditions. Available in U2 (standard) and U3 (high-strength) grades, they meet the demands of commercial shipping, offshore operations, and marine construction.
Key Features & Benefits
✔ Superior Strength – Manufactured from CM490 (U2) / CM690 (U3) steel bars
✔ Corrosion Protection – Hot-dip galvanized (smaller diameters) or bituminous paint (larger diameters)
✔ Certified Quality – Approved by ABS, BV, CCS, DNV·GL, KR, LR, NK, RINA, RS
✔ Custom Lengths – Standard 27.5m per shackle (25m or custom lengths available)
✔ Wide Size Range – 12.5mm to 162mm (Stud Link) / 6mm to 70mm (Studless Link)
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | CM490 (U2) / CM690 (U3) Steel |
| Diameter Range | Stud Link: 12.5mm – 162mm
Studless Link: 6mm – 70mm |
| Surface Finish | Hot-dip galvanized (smaller chains) / Black bituminous paint (larger chains) |
| Standard Length | 27.5m per shackle (25m optional) |
| Certifications | ABS, BV, CCS, DNV·GL, KR, LR, NK, RINA, RS |
Marine Chain Specification:
| Nominal Diameter mm | Breaking Load | Proof Load | Weight | ||
| AM2 | AM3 | AM2 | AM3 | ||
| kN | kN | kN | kN | kg/27.5m | |
| 12.5 | 92 | 132 | 66 | 92 | 98 |
| 14 | 116 | 165 | 82 | 116 | 122 |
| 16 | 150 | 216 | 107 | 150 | 161 |
| 17.5 | 179 | 256 | 127 | 179 | 193 |
| 19 | 211 | 301 | 150 | 211 | 227 |
| 20.5 | 244 | 349 | 175 | 244 | 264 |
| 22 | 280 | 401 | 200 | 280 | 305 |
| 24 | 332 | 476 | 237 | 332 | 362 |
| 26 | 389 | 556 | 278 | 389 | 425 |
| 28 | 449 | 642 | 321 | 449 | 493 |
| 30 | 514 | 735 | 368 | 514 | 566 |
| 32 | 583 | 833 | 417 | 583 | 644 |
| 34 | 655 | 937 | 468 | 655 | 727 |
| 36 | 732 | 1050 | 523 | 732 | 815 |
| 38 | 812 | 1160 | 581 | 812 | 909 |
| 40 | 896 | 1280 | 640 | 896 | 1007 |
| 42 | 981 | 1400 | 703 | 981 | 1110 |
| 44 | 1080 | 1540 | 769 | 1080 | 1218 |
| 46 | 1170 | 1680 | 837 | 1170 | 1331 |
| 48 | 1270 | 1810 | 908 | 1270 | 1450 |
| 50 | 1370 | 1960 | 981 | 1370 | 1573 |
| 52 | 1480 | 2110 | 1060 | 1480 | 1701 |
| 54 | 1590 | 2270 | 1140 | 1590 | 1835 |
| 56 | 1710 | 2430 | 1220 | 1710 | 1973 |
| 58 | 1810 | 2600 | 1290 | 1810 | 2117 |
| 60 | 1940 | 2770 | 1380 | 1940 | 2265 |
| 62 | 2060 | 2940 | 1470 | 2060 | 2419 |
| 64 | 2190 | 3130 | 1560 | 2190 | 2577 |
| 66 | 2310 | 3300 | 1660 | 2310 | 2741 |
| 68 | 2450 | 3500 | 1750 | 2450 | 2909 |
| 70 | 2580 | 3690 | 1840 | 2580 | 3080 |
| 73 | 2790 | 3990 | 1990 | 2790 | 3353 |
| 76 | 3010 | 4300 | 2150 | 3010 | 3634 |
| 78 | 3160 | 4500 | 2260 | 3160 | 3828 |
| 81 | 3380 | 4820 | 2410 | 3380 | 4128 |
| 84 | 3610 | 5160 | 2580 | 3610 | 4440 |
| 87 | 3850 | 5500 | 2750 | 3850 | 1762 |
| 90 | 4090 | 5840 | 2920 | 4090 | 5097 |
| 92 | 4260 | 6080 | 3040 | 4260 | 5326 |
| 95 | 4510 | 6440 | 3230 | 4510 | 5679 |
| 97 | 4680 | 6690 | 3340 | 4680 | 5920 |
| 100 | 4940 | 7060 | 3530 | 4940 | 6292 |
| 102 | 5120 | 7320 | 3660 | 5120 | 6546 |
| 105 | 5390 | 7700 | 3850 | 5390 | 6937 |
| 107 | 5570 | 7960 | 3980 | 5570 | 7204 |
| 111 | 5940 | 8480 | 4250 | 5940 | 7752 |
| 114 | 6230 | 8890 | 4440 | 6230 | 8177 |
| 117 | 6510 | 9300 | 4650 | 6510 | 8613 |
| 120 | 6810 | 9720 | 4850 | 6810 | 9060 |
| 122 | 7000 | 9990 | 5000 | 7000 | 9360 |
| 124 | 7200 | 10280 | 5140 | 7200 | 9675 |
| 127 | 7490 | 10710 | 5350 | 7490 | 10148 |
| 130 | 7800 | 11140 | 5570 | 7800 | 10635 |
| 132 | 8000 | 11420 | 5720 | 8000 | 10965 |
| 137 | 8510 | 12160 | 6080 | 8510 | 11810 |
| 142 | 9030 | 12910 | 6450 | 9030 | 12690 |
| 147 | 9560 | 13660 | 6840 | 9560 | 13600 |
| 152 | 10100 | 14430 | 7220 | 10100 | 14500 |
| 157 | 10640 | 15200 | 7600 | 10640 | 15520 |
| 162 | 11180 | 15980 | 7990 | 11180 | 16530 |
The description/sizes may be different with goods, please check with us when order.
