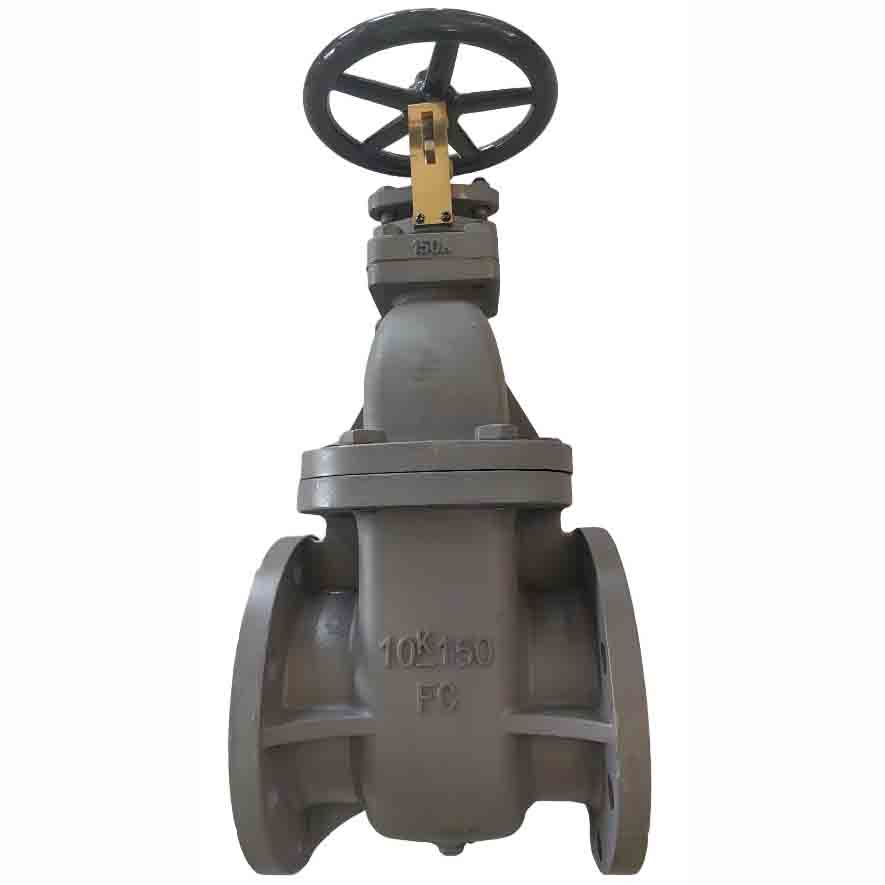

Marine cast iron gate valve 10k
| Product Name | Code | Standard Number | Flange Spacing L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Screw Hole | Weight G (kg) |
|---|---|---|---|---|---|---|---|
| marine cast iron gate valve | 750821 | F7364 10K50 | 200 | 155 | 120 | 4×Ф19 | 19.40 |
| marine cast iron gate valve | 750822 | F7364 10K65 | 220 | 175 | 140 | 4×Ф19 | 27.60 |
| marine cast iron gate valve | 750823 | F7364 10K80 | 230 | 185 | 150 | 8×Ф19 | 33.00 |
| marine cast iron gate valve | 750824 | F7364 10K100 | 250 | 210 | 175 | 8×Ф19 | 45.80 |
| marine cast iron gate valve | 750825 | F7364 10K125 | 270 | 250 | 210 | 8×Ф23 | 65.90 |
| marine cast iron gate valve | 750826 | F7364 10K150 | 290 | 280 | 240 | 8×Ф23 | 86.00 |
| marine cast iron gate valve | 750827 | F7364 10K200 | 320 | 330 | 290 | 12×Ф23 | 136.00 |
| marine cast iron gate valve | 750828 | F7364 10K250 | 380 | 400 | 355 | 12×Ф25 | 230.00 |
| marine cast iron gate valve | 750829 | F7364 10K300 | 440 | 445 | 400 | 16×Ф25 | 331.00 |
| marine cast iron gate valve | – | F7364 10K350 | 500 | 490 | 445 | 16×25 | 433.00 |
Attention please: The description may be different with the product, please contact us for quotation.
