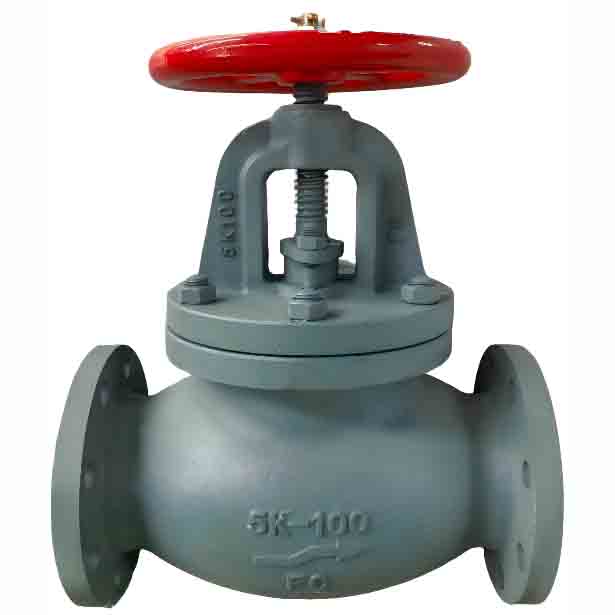

Marine Cast Iron 5K Straight-through Stop Check Valve
| Code | Standard Number | Flange Distance L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Bolt Holes (mm) | Weight G (kg) |
|---|---|---|---|---|---|---|
| 751101 | F7353 5K50 | 210 | 130 | 105 | 4×Ф15 | 14.80 |
| 751102 | F7353 5K65 | 250 | 155 | 130 | 4×Ф15 | 21.30 |
| 751103 | F7353 5K80 | 280 | 180 | 145 | 4×Ф19 | 27.60 |
| 751104 | F7353 5K100 | 340 | 200 | 165 | 8×Ф19 | 40.40 |
| 751105 | F7353 5K125 | 410 | 235 | 200 | 8×Ф19 | 57.90 |
| 751106 | F7353 5K150 | 480 | 265 | 230 | 8×Ф19 | 80.90 |
| 751107 | F7353 5K200 | 570 | 320 | 280 | 8×Ф23 | 139.00 |
| 751108 | F7353 5K250 | 740 | 385 | 345 | 12×Ф23 | 243.00 |
| 751109 | F7353 5K300 | 840 | 430 | 390 | 12×Ф23 | 377.00 |
This table provides a comprehensive overview of the specifications for each model of the Marine Cast Iron 5K Straight-through Stop Check Valve.
Attention please: The description may be different with the product, please contact us for quotation.
