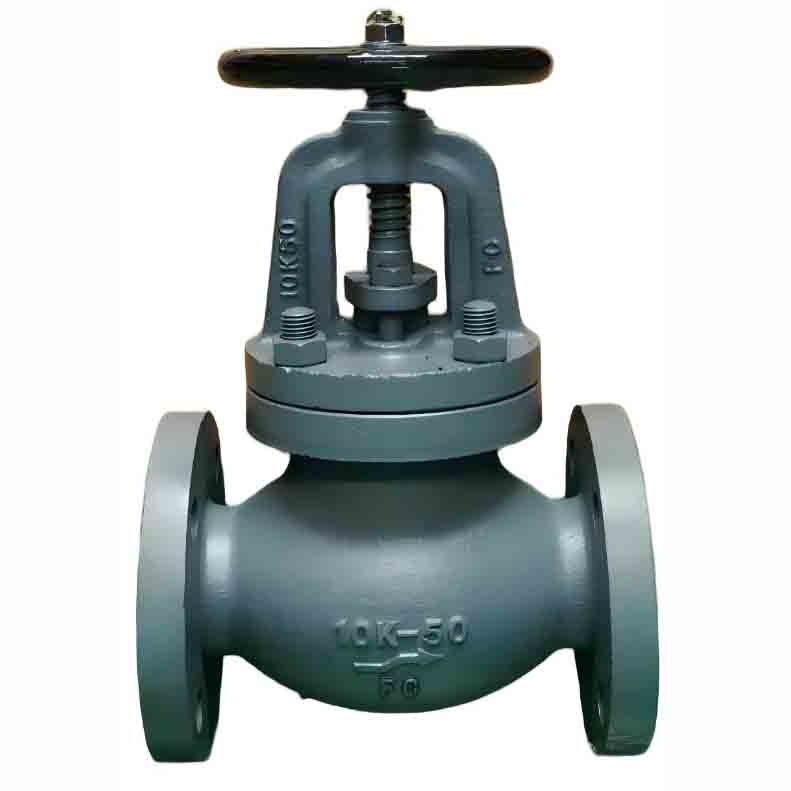

Marine Cast Iron 10K Straight-through Stop Valve
| Code | Standard Number | Flange Distance L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Bolt Holes (mm) | Weight G (kg) |
|---|---|---|---|---|---|---|
| 750231 | F7307 10K50 | 220 | 155 | 120 | 4×Ф19 | 19.90 |
| 750232 | F7307 10K65 | 270 | 175 | 140 | 4×Ф19 | 28.70 |
| 750233 | F7307 10K80 | 300 | 185 | 150 | 8×Ф19 | 32.40 |
| 750234 | F7307 10K100 | 350 | 210 | 175 | 8×Ф19 | 48.70 |
| 750235 | F7307 10K125 | 420 | 250 | 210 | 8×Ф23 | 73.10 |
| 750236 | F7307 10K150 | 490 | 280 | 240 | 8×Ф23 | 104.00 |
| 750237 | F7307 10K200 | 570 | 330 | 290 | 12×Ф23 | 162.00 |
| 750238 | F7307 10K250 | 740 | 400 | 355 | 12×Ф25 | 304.00 |
| 750239 | F7307 10K300 | 840 | 445 | 400 | 16×Ф25 | 458.00 |
This table offers a detailed and organized overview of the specifications for each model of the Marine Cast Iron 10K Straight-through Stop Valve.
Marine Cast Iron 16K Straight-through Stop Valve
| Code | Standard Number | Flange Distance L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Bolt Holes (mm) | Weight G (kg) |
|---|---|---|---|---|---|---|
| 750261 | F7309 16K50 | 220 | 155 | 120 | 8×Ф19 | 19.60 |
| 750262 | F7309 16K65 | 270 | 175 | 140 | 8×Ф19 | 28.30 |
| 750263 | F7309 16K80 | 300 | 200 | 160 | 8×Ф23 | 40.40 |
| 750264 | F7309 16K100 | 350 | 225 | 185 | 8×Ф23 | 56.90 |
| 750265 | F7309 16K125 | 430 | 270 | 225 | 8×Ф25 | 89.50 |
| 750266 | F7309 16K150 | 500 | 305 | 260 | 12×Ф25 | 123.00 |
| 750267 | F7309 16K200 | 570 | 350 | 305 | 12×Ф25 | 188.00 |
This table provides a comprehensive overview of the specifications for each model of the Marine Cast Iron 16K Straight-through Stop Valve.
Attention please: The description may be different with the product, please contact us for quotation.
