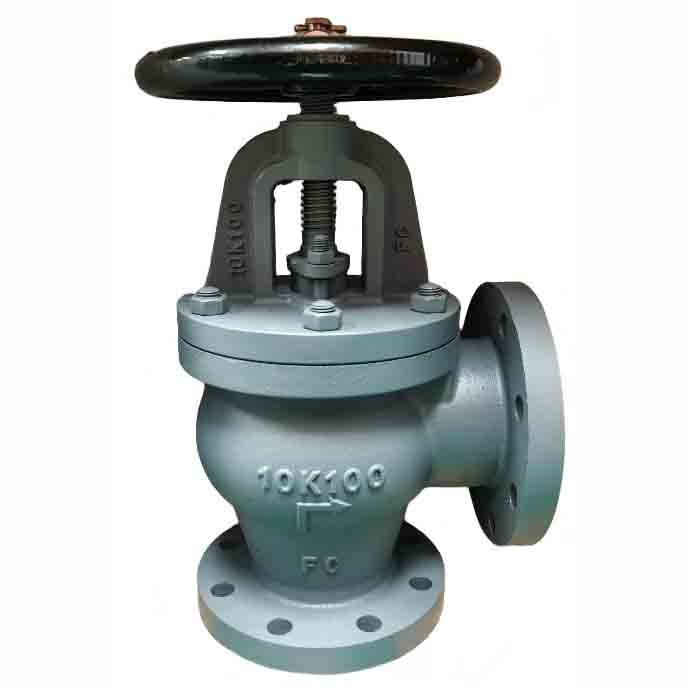

Marine Cast Iron 10K Angle (Right-Angle) Stop Valve
| Code | Standard Number | Flange Distance L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Bolt Holes (mm) | Weight G (kg) |
|---|---|---|---|---|---|---|
| 750246 | F7308 10K50 | 120 | 155 | 120 | 4×Ф19 | 18.20 |
| 750247 | F7308 10K65 | 130 | 175 | 140 | 4×Ф19 | 25.40 |
| 750248 | F7308 10K80 | 140 | 185 | 150 | 8×Ф19 | 27.40 |
| 750249 | F7308 10K100 | 160 | 210 | 175 | 8×Ф19 | 40.60 |
| 750250 | F7308 10K125 | 180 | 250 | 210 | 8×Ф23 | 69.90 |
| 750251 | F7308 10K150 | 205 | 280 | 240 | 8×Ф23 | 81.00 |
| 750252 | F7308 10K200 | 230 | 330 | 290 | 12×Ф23 | 125.00 |
| 750253 | F7308 10K250 | 290 | 400 | 355 | 12×Ф25 | 211.00 |
| 750254 | F7308 10K300 | 320 | 445 | 400 | 16×Ф25 | 293.00 |
This table provides a clear and organized overview of the specifications for each model of the Marine Cast Iron 10K Angle (Right-Angle) Stop Valve.
Marine Cast Iron 16K Angle (Right-Angle) Stop Valve
| Code | Standard Number | Flange Distance L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Bolt Holes (mm) | Weight G (kg) |
|---|---|---|---|---|---|---|
| 750271 | F7310 16K50 | 120 | 155 | 120 | 8×Ф19 | 18.00 |
| 750272 | F7310 16K65 | 130 | 175 | 140 | 8×Ф19 | 25.00 |
| 750273 | F7310 16K80 | 150 | 200 | 160 | 8×Ф23 | 35.70 |
| 750274 | F7310 16K100 | 170 | 225 | 185 | 8×Ф23 | 49.20 |
| 750275 | F7310 16K125 | 200 | 270 | 225 | 8×Ф25 | 76.10 |
| 750276 | F7310 16K150 | 225 | 305 | 260 | 12×Ф25 | 103.00 |
| 750277 | F7310 16K200 | 250 | 350 | 305 | 12×Ф25 | 155.00 |
This table provides a clear and organized overview of the specifications for each model of the Marine Cast Iron 16K Angle (Right-Angle) Stop Valve.
Attention please: The description may be different with the product, please contact us for quotation.
