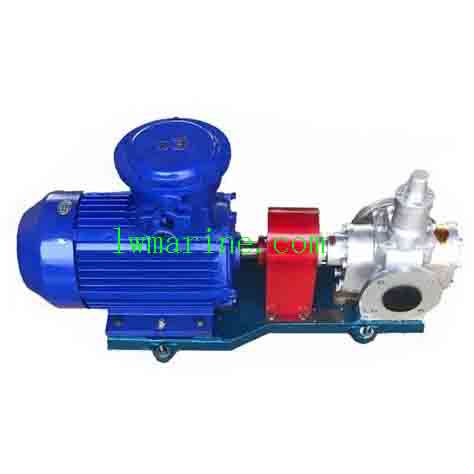

YCB Series Marine Gear Cargo Oil Pump – Advanced Continuous Contact Gear Technology
Product Overview
The YCB Series Marine Gear Cargo Oil Pump represents the pinnacle of gear pump technology with its innovative continuous contact gear design. Engineered for superior performance in marine and industrial applications, this advanced gear pump eliminates trapped oil phenomena through its revolutionary double arc sinusoidal tooth profile. The precision-engineered gears ensure smooth, quiet operation with zero liquid overflow, delivering exceptional efficiency, extended service life, and reliable performance in the most demanding cargo oil transfer operations.
Innovative Technology Features
-
Continuous Contact Gear Design: World’s advanced technology prevents oil trapping phenomenon
-
Double Arc Sinusoidal Tooth Profile: Ensures vibration-free operation and minimal noise
-
Zero Overflow Operation: Maintains leak-free performance under pressure
-
High Efficiency Design: Optimized hydraulic performance reduces energy consumption
-
Long Service Life: Precision manufacturing ensures extended operational durability
-
Backflow Valve Integration: Built-in safety feature prevents reverse flow
Application Range
Oil Transmission Systems
-
Marine cargo oil transfer and booster pump operations
-
Fuel oil conveyance, pressurization, and injection systems
-
Hydraulic power transmission and supply units
Marine & Offshore Applications
-
Shipboard fuel oil transfer and management
-
Marine lubrication oil circulation systems
-
Cargo loading and unloading operations
-
Bilge and ballast water handling (compatible fluids)
Industrial Sector Applications
-
Industrial lubrication oil supply systems
-
Hydraulic power unit applications
-
Process fluid transfer and circulation
-
Energy and power generation facilities
Model Identification: YCB0.6-1.6
-
YCB: Arc Gear Pump with Integrated Backflow Valve
-
0.6: Flow Capacity 0.6 m³/h
-
1.6: Maximum Discharge Pressure 1.6 MPa
Performance Specifications
| Model | Caliber (mm) | Capacity (m³/h) | Speed (rpm) | Pressure (MPa) | NPSHr (m) | Efficiency (%) | Motor Power (kW) |
|---|---|---|---|---|---|---|---|
| YCB0.6-0.6 | φ25 | 0.6-1.2 | 910-1710 | 0.6 | 5.5 | 60 | 0.75 |
| YCB0.6-1.6 | φ25 | 0.6-1.2 | 910-1710 | 1.6 | 7 | 70 | 1.1-1.5 |
| YCB1.6-0.6 | φ32 | 1.6-3 | 910-1710 | 0.6 | 5.5 | 63 | 0.75-1.1 |
| YCB1.6-1.6 | φ32 | 1.6-3 | 940-1750 | 1.6 | 7 | 71 | 2.2-4 |
| YCB3.3-0.6 | φ40 | 3.3-6 | 940-1730 | 0.6 | 5 | 60 | 1.5-2.2 |
| YCB3.3-1.6 | φ40 | 3.3-6 | 960-1750 | 1.6 | 7 | 72 | 5.5-7.5 |
| YCB4-0.6 | φ50 | 4-7.2 | 940-1730 | 0.6 | 5 | 60 | 1.5-3 |
| YCB4-1.6 | φ50 | 4-7.2 | 960-1750 | 1.6 | 7 | 72 | 5.5-7.5 |
| YCB8-0.6 | φ65 | 8-14.4 | 960-1750 | 0.6 | 5 | 61 | 3-5.5 |
| YCB8-1.6 | φ65 | 8-14.4 | 970-1760 | 1.6 | 7 | 75 | 11-15 |
| YCB10-0.6 | φ65 | 10-18 | 960-1750 | 0.6 | 5 | 62 | 4-7.5 |
| YCB10-1.6 | φ65 | 10-18 | 970-1770 | 1.6 | 7 | 76 | 11-18.5 |
| YCB20-0.6 | φ80 | 20-24 | 970-1170 | 0.6 | 5 | 68 | 7.5 |
| YCB25-0.6 | φ100 | 25-30 | 970-1170 | 0.6 | 5.5 | 69 | 11 |
| YCB30-0.6 | φ100 | 30-36 | 970-1170 | 0.6 | 5.5 | 65 | 11 |
| YCB40-0.6 | φ125 | 40-48 | 970-1180 | 0.6 | 5.5 | 66 | 15 |
| YCB50-0.6 | φ125 | 50-60 | 970-1180 | 0.6 | 5.5 | 66 | 22 |
| YCB60-1 | φ125 | 60-73 | 970-1180 | 1 | 5.5 | 65 | 30-37 |
| YCB80-0.6 | φ150 | 80-97 | 970-1180 | 0.6 | 5.5 | 65 | 30-37 |
Technical Advantages
-
Advanced Gear Technology: Continuous contact design eliminates pressure traps
-
Superior Efficiency: Optimized hydraulic performance reduces power consumption
-
Quiet Operation: Sinusoidal tooth profile minimizes noise and vibration
-
Reliable Performance: Robust construction ensures long-term durability
-
Versatile Application: Suitable for various viscosities and fluid types
-
Easy Maintenance: Modular design simplifies service and part replacement
-
Safety Features: Integrated backflow valve prevents system damage
The description/sizes may be different with goods, please check with us when order.
