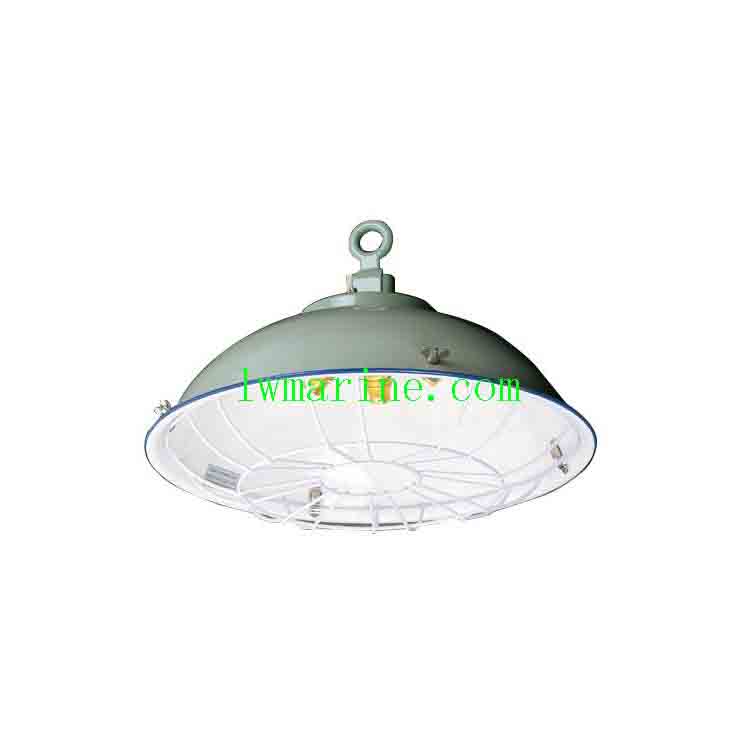

Marine Cargo Light
Our marine cargo light series is specifically engineered to provide reliable and efficient movable illumination within the cargo warehouses of ships. These lights are designed to meet the demanding requirements of marine environments, ensuring optimal performance and safety during loading and unloading operations.
The outer shell of our cargo lights is constructed from high – quality steel, which offers exceptional durability and resistance to impact. Additionally, they are equipped with a robust metal guard that effectively protects the light sources, making them ideal for large – area illumination tasks. These cargo lights strictly adhere to the Grade Entry Norms for Steel Ships, ensuring compliance with international maritime safety standards. Moreover, they have received approval from the China Classification Society (CCS), further validating their quality and reliability.
Product Specifications for Standard Cargo Lights
Five – Bulb Cargo Light (Model: CGD3 – 2)
- Power Configuration: This model features five 60 – watt bulbs, providing a total power output of 5*60W, which is sufficient to illuminate large cargo areas effectively.
- Voltage Compatibility: It can operate on both 110V and 220V power supplies, offering flexibility for different ship electrical systems.
- Lamp Holder Options: The light is equipped with either B22d or E27 lamp holders, allowing for easy replacement of bulbs and compatibility with a wide range of incandescent lamps.
- Illuminant Type: It uses incandescent lamps, which are known for their warm and bright light output.
- Protection Class: With an IP20 protection rating, it is suitable for indoor use in dry environments within the cargo warehouse.
- Weight: The light weighs 3.9kg, providing a stable and sturdy lighting fixture.
Single – Bulb Cargo Light (Model: CGD2)
- Power Options: This model offers two power choices, 300W and 500W, enabling users to select the appropriate power level based on the illumination requirements of the cargo area.
- Voltage Range: Similar to the five – bulb model, it can work on 110V and 220V power sources.
- Lamp Holder: It features an E40 lamp holder, which is commonly used for high – power lighting applications.
- Illuminant: The light uses a self – ballast fluorescent mercury light, which provides energy – efficient illumination with a relatively long lifespan.
- Protection Class: Also has an IP20 protection rating, suitable for indoor dry environments.
- Weight: Weighing 3.64kg, it is a lightweight yet powerful lighting solution.
Marine Explosion – Proof Cargo Light: Ultimate Safety for Hazardous Environments
Our marine explosion – proof cargo light is specifically designed for use on ships, oil drilling platforms, and in chemical and explosive gas areas classified as Zone I or Zone II. This light is engineered to prevent the ignition of flammable gases or vapors, ensuring the safety of personnel and equipment in hazardous environments.
The shell of the explosion – proof cargo light is made of die – casting aluminum alloy, which offers excellent strength and heat dissipation properties. The surface is treated with high – pressure electrostatic plastic spraying, providing a durable and corrosion – resistant finish. The protective net cover is crafted from high – quality carbon steel and is galvanized and plastic – sprayed for double anti – corrosion protection. Additionally, the light is equipped with a tempered glass transparent cover, which offers high light transmittance and impact resistance.
Detailed Product Specifications for Marine Explosion – Proof Cargo Light
- Model Type: BAD51
- Explosion – Proof Mark: ExdⅡBT4 Gb, indicating its compliance with strict explosion – proof standards and its suitability for use in specific hazardous gas environments.
- Voltage: Operates on a 220V power supply, which is a common voltage level in marine and industrial settings.
- Power Rating: Has a power rating of 300W, providing sufficient illumination for large areas in hazardous environments.
- Light Source: Uses incandescent lamps, which are known for their high – intensity light output.
- Lampholder: Features an E40 lamp holder, suitable for high – power lighting applications.
- Material: The main body is made of cast aluminum, ensuring durability and heat resistance.
- Protection Class: With an IP55 protection rating, it is protected against dust ingress and low – pressure water jets, making it suitable for use in semi – outdoor or harsh indoor environments.
- Weight: Weighs 5.5kg, providing a stable and reliable lighting fixture for hazardous areas.
Choose our cargo lights for your ship or industrial application to ensure reliable, efficient, and safe illumination in all conditions.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
