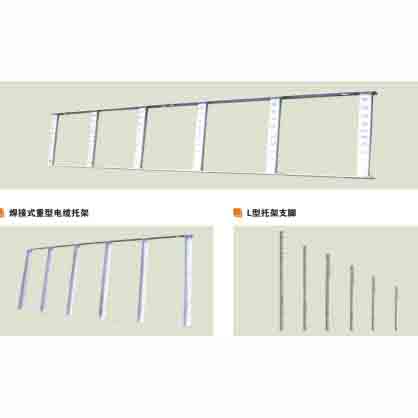

Marine Cable Bracket, Cable Box Class
I Type Cable Trestle
| Type | Hole qua | L(mm) | Remark |
|---|---|---|---|
| I200 | 5 | 200 | 可按用户提供图样尺寸加工 |
| I300 | 11 | 300 | 可按用户提供图样尺寸加工 |
| I400 | 15 | 400 | 可按用户提供图样尺寸加工 |
| I500 | 19 | 500 | 可按用户提供图样尺寸加工 |
| I600 | 23 | 600 | 可按用户提供图样尺寸加工 |
| I700 | 27 | 700 | 可按用户提供图样尺寸加工 |
U Type Cable Trestle
| Type | Hole qua | L(mm) | H(mm) | h(mm) | Remark |
|---|---|---|---|---|---|
| U150 | 5 | 150 | 40, 50 | 10 | 可按用户提供图样尺寸加工 |
| U200 | 7 | 200 | 55, 60 | 10 | 可按用户提供图样尺寸加工 |
| U300 | 11 | 300 | 65, 70 | 10 | 可按用户提供图样尺寸加工 |
| U400 | 15 | 400 | 65, 70 | 10 | 可按用户提供图样尺寸加工 |
| U500 | 19 | 500 | 65, 70 | 10 | 可按用户提供图样尺寸加工 |
| U600 | 23 | 600 | 65, 70 | 10 | 可按用户提供图样尺寸加工 |
| U700 | 27 | 700 | 65, 70 | 10 | 可按用户提供图样尺寸加工 |
Z Type Cable Trestle
| Type | Z-2000 |
|---|---|
| Hole qua | 40 |
| L(mm) | 2000 |
| t | 2.5 |
| h | 12 |
| b | 40 |
U Type Cable Trestle Branch
| Type | U-2000 |
|---|---|
| Hole qua | 40 |
| L(mm) | 2000 |
| t | 3 |
| h | 16 |
| b | 34 |
Cable Terminal
| Specification | M6×30, M8×50, M6×70, M10×30, M10×60, M10×100 | M8×30, M8×50, M8×100, M12×30, M12×60, M12×100 |
|---|---|---|
| Material | Brass | |
| Remark | Can be processed according to the drawings provided by the user |
Note: The description may be different with the product, please contact us for quotation.
