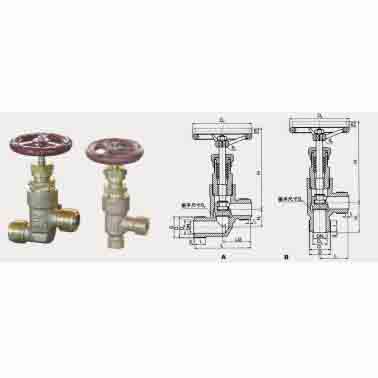

Marine bronze male thread stop valve GB/T595-83
Marine bronze male thread stop check valve GB/T596-83
Technical Data
| Nominal pressure (MPa) | Nominal diameter (mm) | Applicable medium |
|---|---|---|
| 4.0 | 15~32 | Fresh water, Lubricating oil, Fuel oil, and steam t ≤ 250℃ |
| 10.0 | 6~32 | Fresh water, Lubricating oil, Fuel oil, and steam t ≤ 220℃ |
Materials of Main Parts
| Parts name | Material | |
|---|---|---|
| Name | Trademark | |
| Body | Cast aluminum bronze | ZCuAl9Mn2 |
| Cover, Disc, Stem | Aluminum bronze | CuAl9Mn2 |
Dimensions
| Nominal pressure PN (MPa) | Nominal diameter DN (mm) | Structure dimension | Thread joint | Wrench size | Hand wheel | Lift range (mm) | Reference weight (kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | H | D1 | L1 | S1 | D2 | S2 | D3 | S3 | Type A | Type B | ||||||
| 10.0 | 6 | 74 | 37 | 90 | 12 | 32 | M22×1.5 | 19.8 | 10 | 14 | 3 | 24 | 65 | 7 | 0.48 | 0.45 |
| 10.0 | 10 | 94 | 47 | 109 | 16 | 38 | M27×1.5 | 24.8 | 14 | 16 | 3 | 30 | 80 | 8 | 0.87 | 0.85 |
| Nominal pressure PN (MPa) | Nominal diameter DN (mm) | Structure dimension | Thread joint | Wrench size | Hand wheel | Lift range (mm) | Reference weight (kg) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | H | D1 | L1 | S1 | D2 | S2 | D3 | S3 | Type A | Type B | |||||||
| 4.0 | 15 | 110 | 55 | 144 | 25 | 52 | M36×2 | 33 | 22 | 22 | 5 | 32 | 41 | 80 | 8 | 1.51 | 1.45 |
| 4.0 | 20 | 116 | 58 | 154 | 32 | 55 | M39×2 | 36 | 25 | 25 | 5 | 36 | 46 | 100 | 9 | 1.81 | 1.77 |
| 4.0 | 25 | 130 | 65 | 168 | 38 | 64 | M48×2 | 45 | 32 | 26 | 6 | 46 | 50 | 120 | 11 | 1.54 | 2.60 |
| 4.0 | 32 | 140 | 70 | 200 | 46 | 72 | M56×2 | 53 | 38 | 28 | 6 | 46 | 60 | 140 | 12 | 1.61 | 4.08 |
| Nominal pressure PN (MPa) | Nominal diameter DN (mm) | Structure dimension | Thread joint | Wrench size | Hand wheel | Lift range (mm) | Reference weight (kg) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | H | D1 | L1 | S1 | D2 | S2 | D3 | S3 | Type A | Type B | |||||||
| 10.0 | 15 | 120 | 60 | 168 | 27 | 52 | M36×2 | 33 | 22 | 22 | 5 | 32 | 41 | 120 | 11 | 2.10 | 1.96 |
| 10.0 | 20 | 134 | 67 | 195 | 32 | 55 | M39×2 | 36 | 25 | 25 | 5 | 36 | 46 | 140 | 12 | 2.30 | 2.88 |
| 10.0 | 25 | 138 | 68 | 204 | 36 | 64 | M48×2 | 45 | 32 | 26 | 6 | 46 | 50 | 120 | 11 | 2.41 | 3.49 |
| 10.0 | 32 | 142 | 73 | 220 | 46 | 72 | M56×2 | 53 | 38 | 28 | 6 | 46 | 60 | 140 | 12 | 2.51 | 4.25 |
Note: The description may be different with the product, please contact us for quotation.
