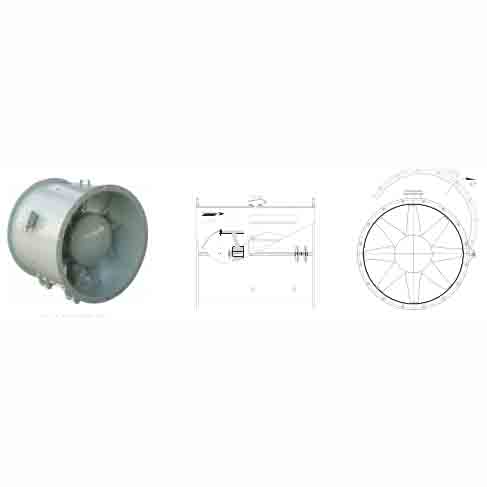

MARINE AXIAL FANS

MARINE AXIAL FANS

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

MARINE AXIAL FANS

1. General

JCZ series marine or navy axial fans (hereafter called the fan) are capable of blowing air/ozone air containing salt vapor and corrosive air which contains oil vapor and a small quantity of acid steam generated by the natural evaporation of the batteries. They are suitable for cabin air ventilating and exchanging as well as boiler ventilation on ocean-going vessels. They are also applicable in other places that suit.

The fan is designed and manufactured according to GB/T11684-2008《Marine Axial Fan》 and the current 《Ship Building Norms》.

2. Features

The casing can be opened, reverse, good anti-corrosive, strong anti-swing, vibration-proof and shock resistant.

3. Structure

The fan is manufactured with a built-in casing motor structure. The impeller is directly mounted on the motor shaft. The impeller is made of anti-corrosive cast aluminum alloy while the casing is made of welded common steel.

As desired, the casing can either be made into an integral one or an open type along the axial direction, the impeller and the motor are fixed on the movable half of the casing so as to bring convenience for on-the-spot repair and the replacement of its spare parts.

The fan can be matched with marine AC motor of 380V, 415V, 50Hz or 440V, 60Hz.

4. Model explanation

JCZ TYPE MAIN PROPERTY PARAMETERS AND DIMENSIONS

Type Flow rate m³/h Total pressure Pa Static pressure Pa Speed r/min Frequency Hz Power Kw Motor type D1 D2 D3 L n×d Weight Kg
JCZ-20 800 110 90 2920 50 0.25 Y632-2H Φ200 Φ240 Φ264 300 8 Φ10
800 160 150 3580 60
800 110 85 2920 50 0.55 Y712-2H
1200 140 110 2920 50
JCZ-25 600 220 200 3500 60 Φ250 Φ290 Φ314
1000 250 160 3500 60
1200 280 130 2920 50
JCZ-30A 1200 280 245 2920 50 Φ300 Φ345 Φ375 340 8 Φ12
1400 440 350 3500 60
1000 295 275 2920 50 0.75 Y801-2H
1200 420 370 2920 50
JCZ-30B 1200 430 330 3500 60
1400 380 215 3500 60
JCZ-35A 3600 440 390 2920 50 1.5 Y802-2H Φ350 Φ395 Φ425 360 8 Φ12
5400 635 555 3500 60 Y90S-2H
3600 410 360 2920 50 1.1 Y802-2H
5400 600 515 3500 60 Y90L-4H
JCZ-35B 4500 460 420 1750 60 0.75 Y90L-4H
6750 690 630 1750 60 Y100L-2H
4500 583 520 2920 50 1.5 Y90S-2H
JCZ-40A 6300 580 530 2920 50 Y100L-2H Φ400 Φ445 Φ475 400 12 Φ12
10000 810 745 3500 60 2.2 Y100L-4H
6300 840 715 2920 50 Y90L-2H
10000 1050 920 3500 60 Y112M-4H
JCZ-40B 8000 520 490 2920 50 1.5 Y90S-2H 550 14 15
12000 750 690 3500 60 2.2 Y100L-4H
JCZ-45A 10000 745 705 2920 50 Y100L-4H Φ450 Φ510 Φ545 420 12 Φ14
15000 1040 960 3500 60 1.5 Y90S-4H
10000 870 800 2920 50 Y100L-4H
15000 1200 1100 3500 60 Y112M-4H
JCZ-45B 12000 850 780 2920 50 2.2 Y100L-2H 460 12 16
18000 1200 1100 3500 60 3 Y100L-2H
Type Flow rate m³/h Total pressure Pa Static pressure Pa Speed r/min Frequency Hz Power Kw Motor type D1 D2 D3 L n×d Weight Kg
JCZ-50 6400 540 480 2920 50 3 Y100L-2H Φ450 Φ510 Φ545 420 12 Φ14
9600 850 780 3500 60 4.5 Y112M-2H
10000 700 630 3500 60 Y122M-2H
JCZ-50A 6000 215 175 1460 50 1.1 Y90S-4H
9000 655 625 2920 50 3 Y100L-2H Φ500 Φ560 Φ595 460 12 Φ15
12000 900 840 3500 60 4 Y112M-2H
JCZ-50B 9000 785 720 2920 50 4 Y112M-2H
12000 1125 990 3500 60 5.5 Y132S-2H
9000 840 780 2920 50 Y100L-4H
12000 1200 1060 3500 60 Y132S-4H
JCZ-60 15000 340 320 1750 60 1.5 Y100L-4H Φ550 Φ610 Φ645 500 12 Φ15
22500 630 570 1750 60 2.2 Y132S-4H
15000 235 215 1750 60 1.5 Y100L-4H
22500 420 370 1750 60 Y132S-4H
JCZ-70 18000 450 390 1750 60 3 Y132M-4H Φ660 Φ690 Φ795 500 12 Φ15
27000 845 770 1750 60 5.5 Y132M-4H
18000 420 360 1750 60 3 Y132M-4H
27000 780 710 1750 60 Y160M-4H
JCZ-70B 10000 605 560 1750 60 4 Y112M-4H 550 14 16
15000 900 820 1750 60 Y132M-4H
JCZ-75 15000 540 490 1750 60 4 Y132M-4H Φ750 Φ820 Φ860 560 16 Φ19
22500 970 880 1750 60 7.5 Y132M-4H
15000 470 430 1750 60 4 Y132M-4H
22500 850 770 1750 60 Y160M-4H
Type Flow rate m³/h Total pressure Pa Static pressure Pa Speed r/min Frequency Hz Power Kw Motor type D1 D2 D3 L n×d Weight Kg
JCZ-80 21000 685 630 1750 60 5.5 Y132M-4H Φ800 Φ870 Φ910 650 16 Φ19
31500 1150 1050 1750 60 7.5 Y160M-4H
JCZ-90A 25000 900 840 1750 60 15 Y160L-4H Φ900 Φ970 Φ1010 650 16 Φ19
37500 1400 1300 1750 60 18.5 Y180M-4H
25000 725 675 1460 50 15 Y160L-4H
37500 1150 1050 1460 50 Y200L-4H
JCZ-90B 30000 800 740 1750 60 18.5 Y180M-4H 750 16 20
45000 1400 1280 1750 60 22 Y200L-4H
JCZ-100A 38000 870 800 1460 50 15 Y180M-4H Φ1000 Φ1070 Φ1100 800 20 Φ19
57000 1500 1380 1460 50 22 Y225M-4H
38000 970 900 1750 60 18.5 Y180M-4H
57000 1600 1480 1750 60 Y250M-4H
JCZ-100B 43000 980 910 1460 50 18.5 Y180M-4H 750 16 22
64500 1700 1560 1460 50 25 Y225M-4H
JCZ-110A 50000 1215 1125 1460 50 22 Y200L-4H 800 20 24
75000 1900 1750 1460 50 30 Y250M-4H
JCZ-120A 62000 1400 1300 1460 50 30 Y250M-4H Φ1200 Φ1280 Φ1330 950 20 Φ24
93000 2300 2120 1460 50 45 Y280S-4H
JCZ-140A 80000 1650 1530 1460 50 37 Y280M-4H Φ1400 Φ1480 Φ1530 1050 24 Φ24
120000 2700 2490 1460 50 55 Y315M-4H
JCZ-140B 95000 1900 1760 1460 50 45 Y315M-4H 1100 24 28
142500 3100 2860 1460 50 65 Y315M-4H

Note: The description might be incorrect, please contact us for confirmation.
