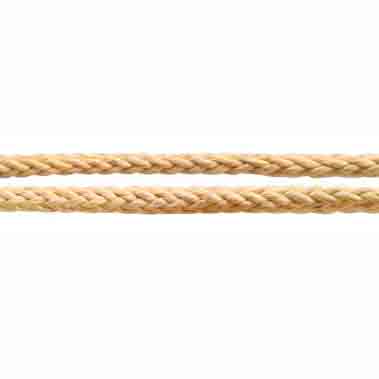

MARINE ARAMID ROPE
Product Information
- Material: Aramid
- Density: 1.44g/cm³ (Sinking)
- Decomposition Temperature: 500°C
- Elongation at Break: 3 – 5%
- Abrasion Resistance: Normal
- UV Resistance: Weak
- Chemical Resistance: Excellent
Aramid ropes have high strength, high modulus, and high – temperature resistance. Under the same diameter, their strength and modulus are 5 – 6 times and 2 – 3 times stronger than steel wire, respectively. Aramid ropes have good insulation and corrosion resistance.
Application: Emergency towing, mooring line.
8 – Strand and 12 – Strand Parameter Table
| Size (mm) | Size (Circ.inch) | Weight (g/m) | Weight (kg/220m) | Breaking Strength (kN) | Breaking Strength (ton) |
|---|---|---|---|---|---|
| 6 | 3/4 | 29 | 6.4 | 28 | 2.8 |
| 10 | 1 – 1/4 | 81 | 17.8 | 97 | 9.9 |
| 14 | 1 – 3/4 | 158 | 34.8 | 160 | 16.3 |
| 18 | 2 – 1/4 | 262 | 57.6 | 243 | 24.8 |
| 22 | 2 – 3/4 | 391 | 86.0 (original 86.1 approximated) | 348 | 35.5 |
| 26 | 3 – 1/4 | 548 | 120.6 | 473 | 48.3 |
| 28 | 3 – 1/2 | 634 | 139.5 | 629 | 64.2 |
| 32 | 4 | 828 | 182.2 | 791 | 80.7 |
| 38 | 4 – 3/4 | 1168 | 257.0 (calculated 1168 * 220 / 1000 = 256.96≈257.0) | 974 | 99.4 |
| 42 | 5 – 1/4 | 1426 | 313.7 (1426 * 220 / 1000 = 313.72) | 1183 | 120.7 |
| 46 | 5 – 3/4 | 1711 | 376.4 | 1413 | 144.2 |
| 50 | 6 – 1/4 | 2022 | 444.8 | 1663 | 169.7 |
| 54 | 6 – 3/4 | 2358 | 518.8 | 1935 | 197.4 |
| 58 | 7 – 1/4 | 2721 | 598.6 | 2227 | 227.3 |
| 62 | 7 – 3/4 | 3109 | 684.0 (3109 * 220 / 1000 = 683.98≈684.0) | 2541 | 259.2 |
| 66 | 8 – 1/4 | 3523 | 775.1 | 2875 | 293.3 |
| 70 | 8 – 3/4 | 3963 | 871.9 (3963 * 220 / 1000 = 871.86≈871.9) | 3220 | 329.6 |
| 74 | 9 – 1/4 | 4429 | 974.4 | 3606 | 367.9 |
| 78 | 9 – 3/4 | 4921 | 1082.6 | 4003 | 408.4 |
| 82 | 10 – 1/4 | 5439 | 1196.6 | 4421 | 451.1 |
| 86 | 10 – 3/4 | 5983 | 1316.3 | 4859 | 495.8 |
| 90 | 11 – 1/4 | 6553 | 1441.7 | 5319 | 542.7 |
| 94 | 11 – 3/4 | 7148 | 1572.6 | 5799 | 591.8 |
| 98 | 12 – 1/4 | 7770 | 1709.4 | 6351 | 647.9 |
| 102 | 12 – 3/4 | 8417 | 1851.8 | 6823 | 696.2 |
Other sizes are available upon request.
Attention please: The description may be different with the product, please contact us for quotation.
