MARINE ALUMINIUM THREE SLIDING WINDOW
261.YHS-016
THIS PRODUCT IS GOOD TIGHTNESS, USED FOR YACHT AND TOURISTRY SHIP

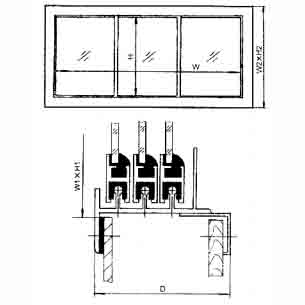

| CLEAR SIZE W×H | EXTERNAL SIZE W1×H1 | CUTOUT SIZE W2×H2 | FRAME DEPTH D | WEIGHT Kg |
|---|---|---|---|---|
| 900×400 | 1026×526 | 962×482 | 14.8 | |
| 1200×500 | 1326×626 | 1282×582 | 80~120 | 20.4 |
| 1500×600 | 1626×726 | 1562×682 | 28.7 | |
| 1800×800 | 1926×926 | 1862×882 | 38.9 |
IDENTIFICATION EXAMPLE:
CLEAR SIZE 1200×500mm, FRAME DEPTH 100mm FOR ALUMINIUM THREE SLIDING WINDOW
ALUMINIUM THREE SLIDING WINDOW 1200×500-100 261.YHS-016
Note: The description may be different with the product, please contact us for quotation.
