Marine Aluminium Sliding Window – CB/T3765-1996
Nominal Sizes and Types
| Code | Nominal Size W × H (mm) | Type |
|---|---|---|
| 1 | 740 × 500 | – |
| 2 | 830 × 560 | – |
| 3 | 930 × 630 | – |
| 4 | 1030 × 710 | – |
| 5 | 500 × 630 | – |
| 6 | 600 × 710 | – |
| 7 | 750 × 800 | – |

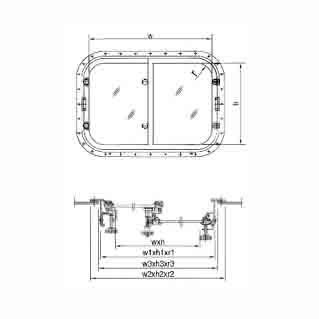

(Refer to original document for type illustrations.)
Dimensions and Specifications (See Table Below)
| Nominal Size W × H | Single Light Size W × H × R | Window Frame Size W1 × H1 × R1 | Frame Opening Size | Glass Size | No. of Frame Mounting Bolts | Max. Allowable Pressure (kPa) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 740 × 500 | 355 × 500 × 50 | 830 × 580 × 54 | 800 × 600 × 100 | 373 × 578 × 98 | 20 | 45 | 26 | 20.0 | 18.9 | |
| 830 × 560 | 400 × 560 × 50 | 918 × 648 × 64 | 800 × 710 × 125 | 420 × 570 × 98 | 24 | 36 | 21 | 21.9 | 20.7 | |
| 930 × 630 | 450 × 630 × 100 | 1019 × 718 × 164 | 1000 × 760 × 175 | 1030 × 730 × 150 | 46 | 48 | 26 | 16 | 24.8 | 23.3 |
| 1030 × 710 | 500 × 710 × 100 | 1119 × 766 × 164 | 1180 × 800 × 175 | 1130 × 810 × 150 | 518 × 728 × 98 | 30 | 23 | 13 | 28.0 | 26.1 |
| 500 × 630 | 235 × 630 × 50 | 508 × 718 × 64 | 650 × 780 × 125 | 600 × 730 × 100 | 468 × 68 | 18 | 66 | 37 | 18.6 | 17.8 |
| 600 × 710 | 265 × 710 × 50 | 668 × 768 × 64 | 750 × 860 × 125 | 700 × 810 × 100 | 728 × 98 | 22 | 46 | 26 | 21.5 | 20.4 |
| 750 × 800 | 360 × 800 × 50 | 836 × 886 × 64 | 900 × 950 × 125 | 850 × 900 × 100 | 378 × 818 × 98 | 26 | 30 | 18 | 25.6 | 24.0 |
Note: The description may be different with the product, please contact us for quotation.
