MARINE ALUMINIUM HOLLOWED CABIN DOOR

CB/T3281—97

262.YHS—003

USED FOR CABIN OF VARIOUS KINDS OF SHIP AND WAR SHIPS.

THE DOOR SURFACE WILL BE ANODIZED BAKING FINISHED OR PVC COVERED.

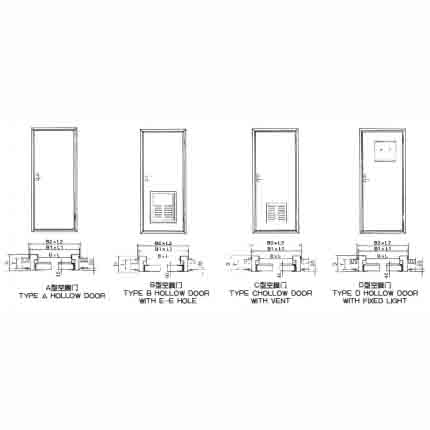

TYPE A HOLLOW DOOR

TYPE B HOLLOW DOOR WITH E-E HOLE

TYPE C HOLLOW DOOR WITH VENT

TYPE D HOLLOW DOOR WITH FIXED LIGHT

FRAME TYPE	CODE
STANDARD MATERIAL	K1
FLANG TYPE	K2

CLASS	OPENING	SIZE OF DOORWAY B×L	FRAME SIZE B1×L1	SIZE OF B.H. OPENING B2×L2	D (＞75)	WEIGHT KG
A	LO (LEFT OUTSIDE)	600×1600	660×1660	668×1668	T+45	23.6
A	LO (LEFT OUTSIDE)	650×1650	730×1730	736×1736	T+45	24.97
A	LO (LEFT OUTSIDE)	700×1750	780×1830	786×1836	T+45	26.83
A	LO (LEFT OUTSIDE)	800×1750	880×1830	886×1836	T+45	28.62
B	RO (RIGHT OUTSIDE)	600×1600	660×1660	668×1668	T+45	34.51
B	RO (RIGHT OUTSIDE)	650×1650	730×1730	736×1736	T+45	35.88
B	RO (RIGHT OUTSIDE)	700×1750	780×1830	786×1836	T+45	37.78
B	RO (RIGHT OUTSIDE)	800×1750	880×1830	886×1836	T+45	39.71
C	LI (LEFT INSIDE)	600×1600	660×1660	668×1668	T+45	24.61
C	LI (LEFT INSIDE)	650×1650	730×1730	736×1736	T+45	26
C	LI (LEFT INSIDE)	700×1750	780×1830	786×1836	T+45	27.87
C	LI (LEFT INSIDE)	800×1750	880×1830	886×1836	T+45	29.78
D	RI (RIGHT INSIDE)	600×1600	660×1660	668×1668	T+45	26.72
D	RI (RIGHT INSIDE)	650×1650	730×1730	736×1736	T+45	28.41
D	RI (RIGHT INSIDE)	700×1750	780×1830	786×1836	T+45	29.8
D	RI (RIGHT INSIDE)	800×1750	880×1830	886×1836	T+45	31.73

AS INDICATION:

DOORWAY SIZE 650×1650, D 150, RIGHT OUTSIDE OPENING, B TYPE, MOLDING MATERIAL DOOR FRAME FOR ALUMINIUM HOLLOWED CABIN DOOR

ALUMINIUM HOLLOWED CABIN DOOR B650×1650×150RO-K1 CB/T3281-1997

Note: The description may be different with the product, please contact us for quotation.
