Marine Air Ventilator

Marine Air Ventilator

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Marine Air Ventilator

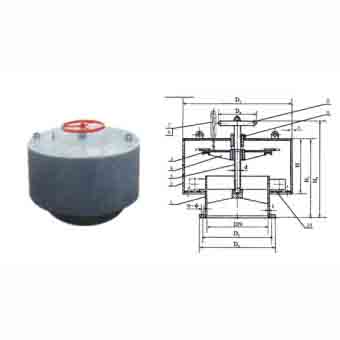

Legend (Structure Diagram)

  1. Ventilator
  2. Hood
  3. Screw
  4. Obturation (Rain & weather seal)
  5. Airproof filling (Sealing packing)
  6. Instruction stick
  7. Sleeve
  8. Handwheel
  9. Oiling glass
  10. The net for miceproof, wormproof or fireproof (Rat/insect/fire screen)

Performance Parameters and Dimensions Table

表格
Nominal Dia DN D₁ D₂ H H₁ H₂ D R Flange Dimensions Weight (kg)
D₃ D₄ N-φ
250 440 200 245 365 447 Tr24×5-LH 314 290 8-φ10 62
300 530 200 265 385 467 Tr24×5-LH 375 345 8-φ10 77
350 620 200 310 430 512 Tr24×5-LH 425 395 8-φ10 96
400 710 280 345 470 566 Tr30×6-LH 475 445 12-φ12 118
450 800 280 375 500 596 Tr30×6-LH 525 495 12-φ12 147
500 890 280 405 530 639 Tr30×6-LH 595 560 12-φ15 179
550 980 320 435 560 669 Tr40×7-LH 645 610 12-φ15 207
600 1050 320 470 620 729 Tr40×7-LH 695 660 12-φ15 223
650 1160 320 500 650 759 Tr40×7-LH 745 710 12-φ15 249
700 1240 320 520 670 779 Tr40×7-LH 795 760 16-φ15 274
750 1320 360 540 690 799 Tr46×8-LH 860 820 16-φ19 309
800 1410 360 560 740 849 Tr46×8-LH 910 870 16-φ19 359
850 1500 360 580 760 869 Tr46×8-LH 960 920 16-φ19 408
900 1580 360 600 780 900 Tr46×8-LH 1010 970 16-φ19 434
950 1670 360 620 800 920 Tr46×8-LH 1060 1020 16-φ19 453
1000 1760 360 640 820 940 Tr46×8-LH 1110 1070 20-φ19 530
1100 1930 360 680 860 980 Tr46×8-LH 1210 1170 20-φ19 601
1200 2100 360 720 900 1020 Tr46×8-LH 1330 1280 20-φ24 689

Note: The description may be different with the product, please contact us for quotation.
