Marine Air Compressors (Model: CWF-20/1) – Technical Specifications
Product Overview:
The CWF-20/1 Marine Air Compressors is a W-type configuration marine air compressor designed for reliable low-pressure air supply in demanding shipboard environments. Engineered for extended service life with minimal maintenance requirements.
Key Features:
-
W-Type Compact Design – Space-efficient installation
-
Low Noise Operation – Reduced acoustic impact
-
Energy Efficient – Optimized for continuous duty cycles
-
Maintenance-Friendly – Easy-access service components

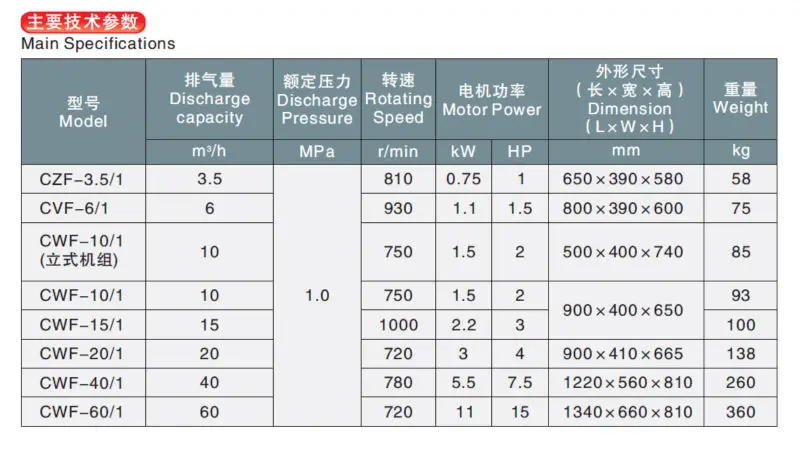

Performance Specifications:
-
Air Delivery Capacity: 20 m³/h (at standard conditions)
-
Working Pressure: 1.0 MPa (145 psi)
-
Control System: Dual-mode operation (Manual/Automatic)
-
Automatic pressure regulation
-
Unloading and pressure relief functions
-
Start/stop sequencing
-
The description/sizes may be different with goods, please check with us when order.
