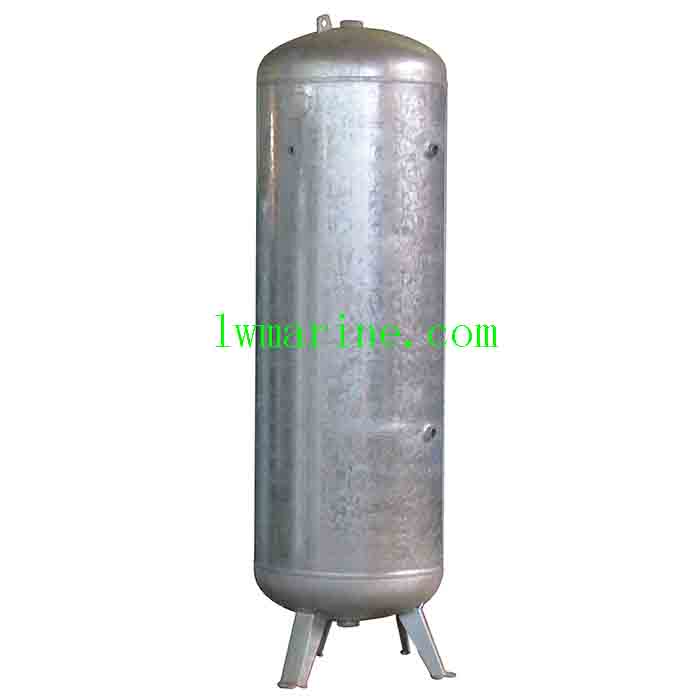

2000L Vertical Emergency Air Reservoir Marine Air Bottle: Essential Backup for Main Engine and Generator Start-Up
The 2000L Vertical Emergency Air Reservoir Marine Air Bottle is a critical component designed to ensure seamless start-up of the main engine and generator when the primary air reservoir’s pressure is insufficient. This marine low-pressure air receiver is primarily utilized for storing compressed air and supplying it for start-up or air whistle operations for both the main and auxiliary engines on ships.
Key Features and Types:
- A-Type Marine Air Bottle: Comprises a bottle valve and steel body. The body is equipped with a handhole (or manhole) for easy cleaning and inspection. The bottle valve includes an inlet/outlet valve, safety valve, pressure gauge, pressure gauge valve, and drain valve, ensuring comprehensive functionality and safety.
- B-Type Marine Air Bottle: Features a steel body, shell cover, and a manhole in the shell cover for convenient examination and repair. It also includes an inlet/outlet valve, safety valve, pressure gauge, pressure gauge valve, drain valve, and installation seat, providing a robust and reliable solution for marine applications.
Customization and Compliance:
- The specifications of our marine air bottles are tailored according to volume and working pressure requirements, adhering to standards such as CB/T493-1998. We also offer the flexibility to customize non-standard products based on your specific parameters.
Technical Data Overview:
A-Type Technical Specifications:
| Type Remark | Capacity (m³) | Working Pressure (Mpa) | Internal Diameter (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| A0.05-1.0 | 0.05 | 1 | 300 | 1050 | 70 |
| A0.10-1.0 | 0.1 | 1 | 400 | 1270 | 125 |
| … | … | … | … | … | … |
| A0.50-3.0 | 0.5 | 3 | 600 | 2270 | 450 |
B-Type Technical Specifications:
| Type Remark | Capacity (m³) | Working Pressure (Mpa) | Internal Diameter (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| B0.63-1.0 | 0.63 | 1 | 700 | 1370 | 480 |
| B0.80-1.0 | 0.8 | 1 | 700 | 1370 | 520 |
| … | … | … | … | … | … |
| B16.00-3.0 | 16 | 3 | 2000 | 3070 | 11000 |
FAQs:
- Q: What is the primary function of the 2000L Vertical Emergency Air Reservoir Marine Air Bottle?
- A: The primary function is to provide a backup source of compressed air for starting the main engine and generator when the primary air reservoir’s pressure is insufficient.
- Q: Can the marine air bottle be customized according to specific requirements?
- A: Yes, we offer customization options based on your specific volume and working pressure parameters, ensuring the product meets your exact needs.
- Q: What safety features are included in the marine air bottle?
- A: Both A-type and B-type marine air bottles include safety valves, pressure gauges, and drain valves to ensure safe operation and easy maintenance.
- Q: How do I choose the right type and capacity of marine air bottle for my ship?
- A: The choice depends on your ship’s engine requirements and the available space. Our technical team can assist you in selecting the most suitable type and capacity based on your specific needs.
- Q: Are the marine air bottles compliant with international standards?
- A: Yes, our marine air bottles adhere to international standards such as CB/T493-1998, ensuring high quality and reliability in marine applications.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
