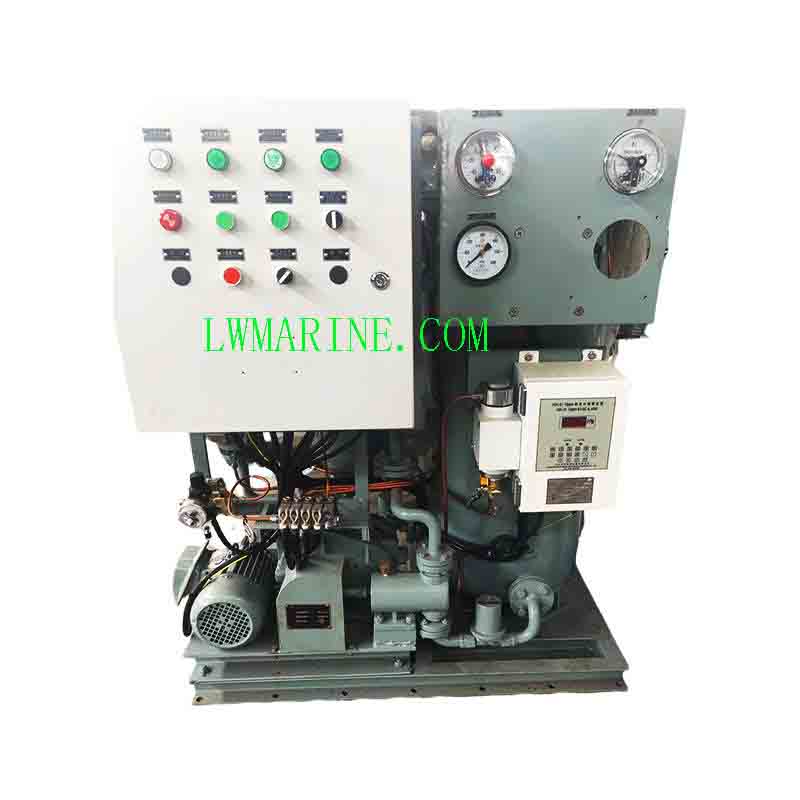

Automatic Marine 15ppm High – Efficiency Bilge Water Separator
Our Automatic Marine 15ppm Bilge Water Separator is a cutting – edge, type – certified oily water treatment apparatus. It is specifically engineered to process bilge water from a wide range of marine vessels, enabling them to strictly adhere to the rigorous international environmental regulations. This fully automated system seamlessly combines a 15ppm bilge water separator, a high – precision oil content monitor (also known as a bilge alarm), and an automatic shut – off device. This integration ensures full compliance with IMO MEPC.107(49) rules. It is an ideal solution for all kinds of commercial and industrial ships, guaranteeing that the effluent quality has an oil content no higher than 15ppm, thus allowing for legal and safe overboard discharge.
Key Features & Advantages
✅ Full Compliance with IMO MEPC.107(49) Standards: It ensures that the discharged water strictly meets the ≤15ppm oil content requirement, helping marine vessels avoid environmental violations.
✅ Fully Automated Functionality: The integrated oil content monitor, automatic shut – off feature, and pneumatic/electromagnetic valve control system significantly reduce the need for manual operation, enhancing operational efficiency.
✅ Two – Stage High – Efficiency Separation Process: It combines gravity separation, coalescence, and membrane filtration technologies to achieve superior oil removal from bilge water.
✅ Self – Cleaning and Oil Recovery Capabilities: The automatic oil drainage and backflush functions enable continuous and uninterrupted operation while minimizing maintenance requirements.
✅ Extensive Certification Range: It has received approvals from major marine classification societies such as CCS, BV, DNV, GL, ABS, LR, RINA, KR, and EC, ensuring its global acceptability.
✅ Sturdy Construction Design: All components, including the plunger pump, coalescer, and control system, are mounted on a common base. This not only facilitates easy installation but also ensures long – lasting durability.
How It Works – Advanced Oil – Water Separation Technology
The system employs a sophisticated combination of vacuum suction, coalescence technology, and membrane filtration to achieve optimal separation results:
First – Stage Separation: The bilge water first passes through an initial filter. Here, large oil droplets are effectively removed through the force of gravity, starting the purification process.
Coalescing Second – Stage: Smaller oil particles then enter a specialized coalescer. In this stage, these tiny particles are aggregated into larger ones, making them easier to extract from the water.
Final Membrane Polishing: If necessary, a secondary emulsified oil treatment module is activated. This module ensures that even the most stubborn oil – water emulsions are broken down, further purifying the water.
Fully Automatic Control: The system continuously monitors the water quality in real – time. If the oil content exceeds the 15ppm limit, it automatically triggers either the recirculation mode or the membrane treatment mode. Additionally, the automatic oil drainage and pneumatic valve operations ensure smooth and seamless performance with minimal crew involvement.
Included Components
- Primary oil – water separator
- Secondary emulsified oil separator (with an integrated design)
- Plunger pump
- Electric control box
- 15ppm oil content alarm and recorder
- Fine filter unit
- Pneumatic and electromagnetic valves
- Common base frame
Spare Parts List
| NO. | Name | Quantity |
|---|---|---|
| 1 | Grease seal for feed pump | 2 sets |
| 2 | Secondary filter element | 2 sets |
| 3 | Separator O – Ring | 1 piece |
| 4 | Filter O – Ring | 1 piece |
| 5 | Flange O – Ring | 8 pieces |
| 6 | Bilge level probe | 1 pc |
| 7 | Seawater pre – filter | 1 pc |
Certifications & Approvals
This automatic bilge water separation system has obtained approvals and type certifications from all the major marine classification bodies worldwide, including: CCS, EC, BV, GL, KR, DNV, LR, ABS, RINA. These certifications are a testament to its high quality and reliability, making it a trusted choice for marine vessels around the globe.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
