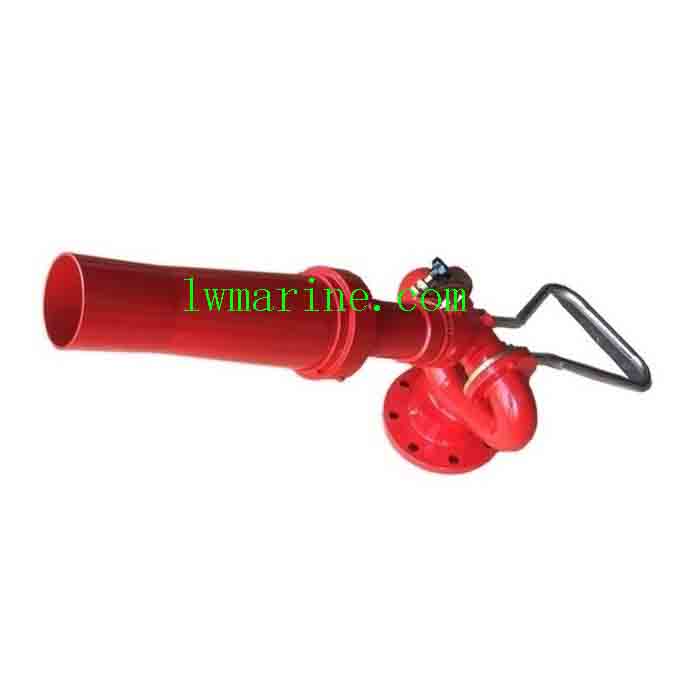

Manual Water Foam Fire Monitor | Portable Dual-Agent Firefighting Monitor | For Class A & B Fires
Product Description:
Our Manual Water Foam Fire Monitor is a versatile, heavy-duty firefighting solution designed to combat both flammable liquid fires (Class B) and solid combustible fires (Class A). This dual-agent monitor generates and sprays high-expansion foam for effective liquid fire suppression while also functioning as a powerful water monitor for ordinary fires. Featuring an ergonomic operating handle, it offers smooth horizontal 360° rotation and vertical pitch adjustment for precise directional control. Ideal for high-risk environments, this manually operated fire monitor requires low inlet pressure and delivers reliable performance in critical situations.
Key Advantages:
-
Low Inlet Pressure Operation: Functions efficiently even with limited water supply pressure
-
Simple Robust Construction: Minimal moving parts ensure reliability and ease of use
-
Compact & Portable Design: Space-efficient profile enables deployment in confined areas
-
Dual-Agent Capability: Effective on both liquid and solid fuel fires
-
Full-Range Mobility: 360° horizontal rotation and wide vertical pitch adjustment
-
Easy Installation & Maintenance: Simplified design reduces downtime and service requirements
Technical Specifications:
| Model | Flow Range (L/S) | Jetting Range (≥m) | Rated Pressure (MPa) | Foam Multiple | Drainage Time | Mix Ratio (%) | Pitching Angle | Rotation Angle | Weight (≤kg) | Flange | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Water | Foam | ||||||||||
| PL24 | 24 | 45 | 40 | 0.8 | ≥6 | ≥2.5 min | 3-7% | -70° to +70° | 360° | 30 | DN100 |
| PL32 | 32 | 50 | 45 | 0.8 | ≥6 | ≥2.5 min | 3-7% | -70° to +70° | 360° | 55 | DN100 |
| PL40 | 40 | 55 | 50 | 0.8 | ≥6 | ≥2.5 min | 3-7% | -70° to +70° | 360° | 55 | DN100 |
| PL48 | 48 | 60 | 55 | 0.8 | ≥6 | ≥2.5 min | 3-7% | -70° to +70° | 360° | 65 | DN100 |
| PL64 | 64 | 65 | 60 | 1.0 | ≥6 | ≥2.5 min | 3-7% | -70° to +70° | 360° | 65 | DN100 |
| PL80 | 80 | 75 | 70 | 1.0 | ≥6 | ≥2.5 min | 3-7% | -70° to +70° | 360° | 65 | DN100 |
| PL100 | 100 | 80 | 75 | 1.0 | ≥6 | ≥2.5 min | 3-7% | -70° to +70° | 360° | 95 | DN150 |
| PL120 | 120 | 85 | 80 | 1.0 | ≥6 | ≥2.5 min | 3-7% | -70° to +70° | 360° | 95 | DN150 |
| PL150 | 150 | 90 | 85 | 1.4 | ≥6 | ≥2.5 min | 3-7% | -70° to +70° | 360° | 125 | DN200 |
| PL180 | 180 | 95 | 90 | 1.4 | ≥6 | ≥2.5 min | 3-7% | -70° to +70° | 360° | 125 | DN200 |
| PL200 | 200 | 100 | 95 | 1.4 | ≥6 | ≥2.5 min | 3-7% | -70° to +70° | 360° | 125 | DN200 |
The description/sizes may be different with goods, please check with us when order.
