MANHOLE COVERS FOR SHIP
CB/T19-2001
263.YHS-002
PRODUCT DESCRIPTION
USED FOR THE WATERTIGHT AND OILTIGHT MANHOLE COVERS, NOT APPLICABLE TO BOILERS AND PRESSURE VESSELS, COMPLY WITH ISO5894

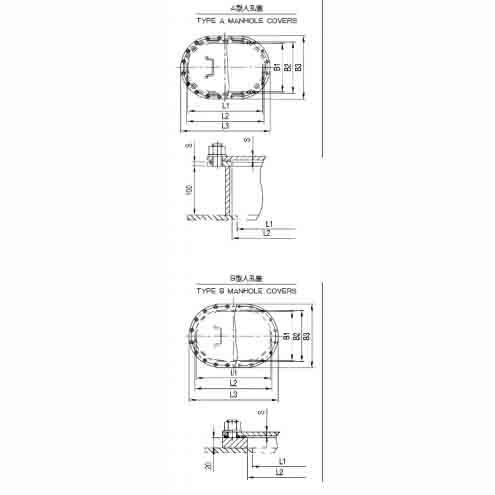

TYPE A MANHOLE COVERS
| TYPE | NOMINAL SIZE | L1 (mm) | L2 (mm) | L3 (mm) | B1 (mm) | B2 (mm) | B3 (mm) | S (mm) | FASTENER DIA. | FASTENER QTY. | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 450×350 | 450 | 470 | 570 | 350 | 370 | 470 | 4 | 16 | 23.2 | |
| 6 | 30.8 | ||||||||||
| 8 | 36.9 | ||||||||||
| 10 | 45.8 | ||||||||||
| 600×400 | 600 | 620 | 720 | 400 | 420 | 520 | 6 | 20 | 48.8 | ||
| 8 | 59.2 | ||||||||||
| 10 | M20 | 69.3 | |||||||||
| 12 | 79.6 | ||||||||||
| 800×600 | 800 | 820 | 920 | 600 | 620 | 720 | 8 | 28 | 52.4 | ||
| 10 | 65.8 | ||||||||||
| 12 | 78.2 | ||||||||||
| 14 | 90.2 |
TYPE B MANHOLE COVERS
| TYPE | NOMINAL SIZE | L1 (mm) | L2 (mm) | L3 (mm) | B1 (mm) | B2 (mm) | B3 (mm) | S (mm) | FASTENER DIA. | FASTENER QTY. | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B | 450×350 | 450 | 470 | 570 | 350 | 370 | 470 | 4 | 16 | 28.9 | |
| 6 | 33.8 | ||||||||||
| 8 | 37.2 | ||||||||||
| 10 | 41.2 | ||||||||||
| 600×400 | 600 | 620 | 720 | 400 | 420 | 520 | 8 | 20 | 49.5 | ||
| 10 | 55.6 | ||||||||||
| 12 | M20 | 61.2 | |||||||||
| 14 | 67.6 | ||||||||||
| 800×600 | 800 | 820 | 920 | 600 | 620 | 720 | 12 | 26 | 67.2 | ||
| 14 | 75.2 | ||||||||||
| 16 | 82.8 | ||||||||||
| 18 | 89.9 | ||||||||||
| 800×400 (ELLIPSE) | 800 | 830 | 930 | 400 | 430 | 530 | 12 | 24 | 56.8 | ||
| 14 | 63.2 | ||||||||||
| 16 | 69.2 | ||||||||||
Note: The description may be different with the product, please contact us for quotation.
