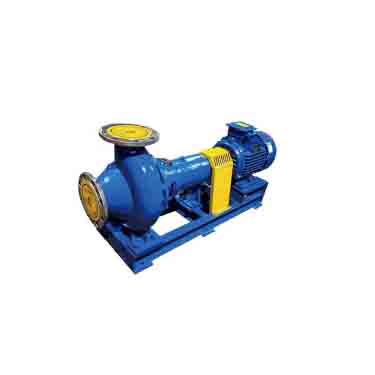

LX TYPE SCREW CENTRIFUGAL PUMP

LX TYPE SCREW CENTRIFUGAL PUMP

1. Product Introduction

Spiral centrifugal pump can transport high-concentration slurry and materials containing large particles and long fibers. Its open (or semi-open) impeller has a spiral shape. The volute casing is of the involute type. The pump body extends axially to form a spiral flow channel. The pump body consists of two parts: the suction chamber and the volute chamber. The impeller in the suction pipe section produces a spiral propulsion effect like a screw pump, while the impeller in the volute section produces a centrifugal effect like a typical centrifugal pump. The sharp-angled part of the blade inlet guides debris towards the vicinity of the axis and then uses the spiral effect to push it along the axial direction. This is a pump with a combination structure of a volumetric pump and a centrifugal pump, called a spiral centrifugal pump.

2. Introduction to Pump Sealing

• Wastewater treatment field: Testing the discharge of high-concentration untreated wastewater and sewage, such as the conveyance of 1-meter-long plastic woven tape by a larger-diameter pump;
• River dredging: transportation of silt and sand;
• Paper industry: transportation of high-concentration pulp;
• Marine fishing: transporting live fish, live shrimp, etc.;

3. Meaning of LX Spiral Centrifugal Pump Model

4. Functional Data

Attention please: The description might be incorrect, please contact us for confirmation.
