LOW VOLTAGE SPOT LIGHT

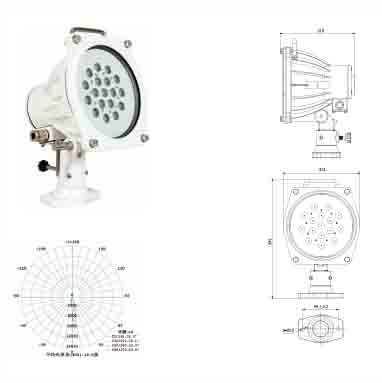

Product Images and Dimensions Diagram
[The image shows multiple views of the low – voltage spot light product, including front, side, and back views, along with a dimensions diagram indicating various measurements such as overall diameter 234, height 214, and other detailed dimensions.]
Applicable Scope
Applied to illumination in outdoor places such as ships, dock ports, storage yards and stadiums.
| Item | Detail |
|---|---|
| Type | TG15 – N |
| Rated Voltage | AC380/440V, DC24V |
| Power | 50W |
| Power Factor | >0.9 |
| Illuminant | LED |
| Color | White |
| Luminous Flux | 5000lm |
| Color Temperature | 5700K (Optional: 3000K, 4000K, 5000K) |
| Adjustment Method | Manual Regulation |
| Horizontal Angle | 360° |
| Elevation Angle | 60°, Depression Angle 60° |
| Protection Class | IP66 |
| Cable Outside Diameter | φ10 – φ12 (Optional: φ10 – φ14) |
| Installation Method | Surface – mounted Type |
| Ambient Temperature | -40℃ – +55℃ |
| Lamp Body Material | High – Quality Marine Aluminum Alloy |
| Gland Material | Brass |
| Lamp Shade Material | Toughened Glass |
| Weight | 5.5kg |
Attention please: The description may be different with the product, please contact us for quotation.
