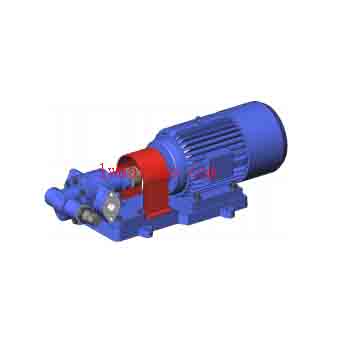

KCB & YCB Gear Pump
KCB & YCB Gear Pump is a standard involute gear pump, and YCB is an internal arc gear pump.
Suitable for conveying non-corrosive lubricating oils or other liquids with similar properties that do not contain solid particles or fibers, have a temperature not exceeding 300°C, and a viscosity ranging from 5×10⁻⁶ to 1.5×10⁻³ m²/s (5–1,500 cSt). By reducing the pump speed, the viscosity of the conveyed medium can be increased to 5×10⁴ cSt.
Performance Range
- Capacity: 1.1~684m³/h
- Discharge pressure: 0.28~2.5Mpa
Product Features:
- Especially suitable for conveying viscous oil.
- With a safety return valve for safer and more reliable operation.
Attention please: The description might be incorrect, please contact us for confirmation.
