JIS Stockless Anchor

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

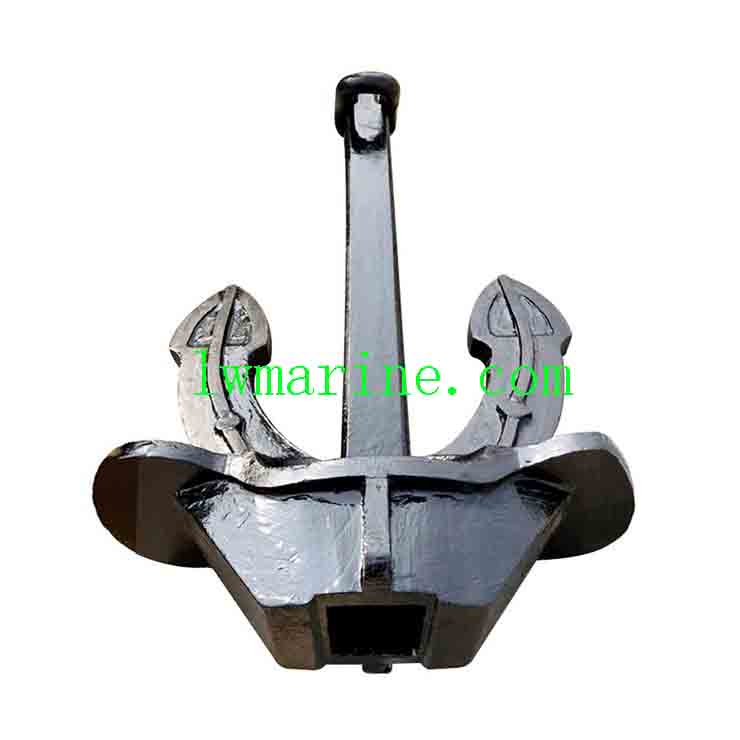

JIS Stockless Anchor – Certified Marine-Grade Cast Steel Anchors

For over seven years, we have been a trusted manufacturer and supplier of high-quality JIS Stockless Anchor, serving shipyards and maritime clients globally. Engineered from durable cast steel and finished with protective black painting, our JIS Stockless Anchors are available in weights ranging from 180 kg to 20,000 kg. Designed for easy stowage, reliable seabed engagement, and straightforward handling, these anchors are widely used as primary bow anchors for various types of commercial and industrial vessels.

Our anchors are certified by leading classification societies such as ABS, LR, NK, BV, and IRS, and have been delivered to numerous customers across Indonesia, Malaysia, and other maritime regions. We pride ourselves on offering safe, professional, and fast delivery services—making us your reliable anchor partner in China.


JIS Stockless Anchor – Specifications

  • Material: High-Grade Cast Steel

  • Type: JIS Stockless Anchor

  • Weight Range: 180 kg – 20,000 kg

  • Finish: Black Painting

  • Certifications: ABS, LR, NK, BV, IRS, and more

  • Applications: Shipyards, Commercial Vessels, Marine Projects


Detailed Dimension Table

Weight (kg) L (mm) L1 (mm) L2 (mm) H (mm) H1 (mm) H2 (mm)
180 650 459 910 111 480 280
240 720 510 1010 122 530 310
300 770 540 1080 131 570 331
360 820 580 1150 139 610 353
420 860 610 1200 146 640 370
480 900 640 1260 153 670 387
570 950 670 1330 162 700 408
660 1000 710 1440 170 740 430
780 1060 750 180 180 780 456
900 1110 780 1550 189 820 477
1020 1160 820 1620 197 860 500
1140 1200 850 1680 204 890 520
1290 1250 880 1750 212 920 540
1440 1300 920 1820 221 960 560
1590 1340 950 1880 228 990 580
1740 1380 980 1930 235 1020 600
1920 1430 1010 2000 243 1060 620
2100 1470 1040 2060 250 1090 640
2280 1510 1070 2110 257 1120 650
2460 1550 1100 2170 264 1150 670
2640 1590 1120 2230 270 1180 690
2850 1630 1150 2280 277 1210 700
3060 1670 1180 2340 284 1240 720
3300 1710 1210 2390 291 1270 740
3540 1750 1240 2450 298 1290 750
3780 1790 1260 2510 304 1320 770
4050 1830 1290 2560 311 1350 790
4320 1870 1320 2620 318 1380 800
4590 1910 1350 2670 325 1410 820
4890 1950 1380 2730 332 1440 840
5250 2000 1410 2800 340 1480 860
5610 2040 1440 2860 347 1510 880
6000 2090 1480 2930 355 1540 900
6450 2140 1510 3000 364 1580 920
6900 2190 1550 3070 372 1620 940
7350 2260 1600 3140 380 1660 960
7800 2280 1610 3190 388 1680 980
8300 2330 1650 3260 396 1720 1000
8700 2380 1670 3320 403 1750 1020
9300 2420 1710 3390 411 1790 1040
9900 2470 1740 3460 420 1820 1060
10500 2540 1800 3530 430 1880 1090
11100 2540 1800 3600 430 1880 1090
11700 2630 1855 3650 445 1945 1130
12300 2630 1855 3710 445 1945 1130
12900 2670 1885 3770 453 1975 1170
13500 2670 1885 3840 453 1975 1170
14100 2780 1960 3890 473 2050 1200
14700 2820 1990 3950 479 2080 1210
15400 2860 2020 4000 486 2110 1230
16100 2900 2050 4060 493 2140 1250
16900 2950 2080 4130 500 2180 1270
17800 3000 2120 4200 510 2210 1290
18800 3060 2160 4280 520 2260 1320
20000 3120 2200 4370 530 2300 1340

The description/sizes may be different with goods, please check with us when order.
