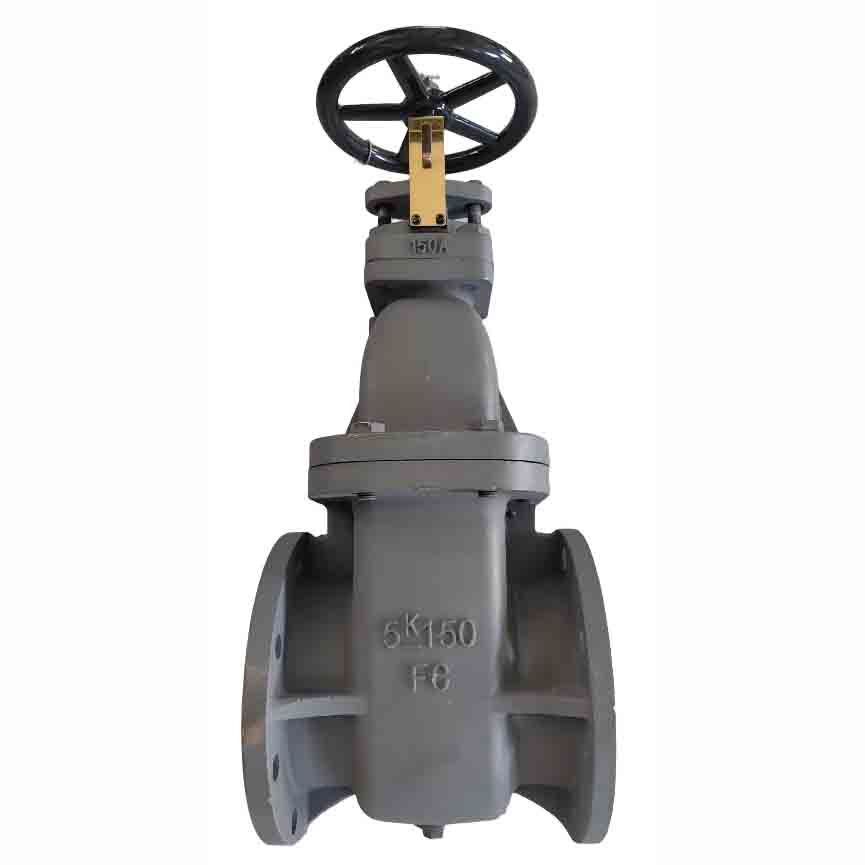

JIS Marine Cast Steel 5K Gate Valve
| Name | Image | Code | Standard Number | Flange Spacing L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Screw Hole | Weight G (kg) |
|---|---|---|---|---|---|---|---|---|
| cast steel gate valve | – | F7363C 5K50 | – | 180 | 130 | 105 | 4×Ф15 | 13.50 |
| cast steel gate valve | – | F7363C 5K65 | – | 190 | 155 | 130 | 4×Ф15 | 19.00 |
| cast steel gate valve | – | F7363C 5K80 | – | 200 | 180 | 145 | 4×Ф19 | 24.20 |
| cast steel gate valve | – | F7363C 5K100 | – | 230 | 200 | 165 | 8×Ф19 | 35.30 |
| cast steel gate valve | – | F7363C 5K125 | – | 250 | 235 | 200 | 8×Ф19 | 48.10 |
| cast steel gate valve | – | F7363C 5K150 | – | 270 | 265 | 230 | 8×Ф19 | 65.30 |
| cast steel gate valve | – | F7363C 5K200 | – | 290 | 320 | 280 | 8×Ф23 | 103.00 |
| cast steel gate valve | – | F7363C 5K250 | – | 330 | 385 | 345 | 12×Ф23 | 164.00 |
| cast steel gate valve | – | F7363C 5K300 | – | 370 | 430 | 390 | 12×Ф23 | 236.00 |
Cast Steel 10K Gate Valve
| Name | Image | Code | Standard Number | Flange Spacing L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Screw Hole | Weight G (kg) |
|---|---|---|---|---|---|---|---|---|
| cast steel gate valve | – | 750901 | F7366 10K50 | 200 | 155 | 120 | 4×Ф19 | 17.10 |
| cast steel gate valve | – | 750902 | F7366 10K65 | 220 | 175 | 140 | 4×Ф19 | 26.50 |
| cast steel gate valve | – | 750903 | F7366 10K80 | 230 | 185 | 150 | 8×Ф19 | 31.50 |
| cast steel gate valve | – | 750904 | F7366 10K100 | 250 | 210 | 175 | 8×Ф19 | 44.90 |
| cast steel gate valve | – | 750905 | F7366 10K125 | 270 | 250 | 210 | 8×Ф23 | 63.20 |
| cast steel gate valve | – | 750906 | F7366 10K150 | 290 | 280 | 240 | 8×Ф23 | 82.30 |
| cast steel gate valve | – | 750907 | F7366 10K200 | 310 | 330 | 290 | 12×Ф23 | 130.00 |
| cast steel gate valve | – | 750908 | F7366 10K250 | 340 | 400 | 355 | 12×Ф25 | 203.00 |
| cast steel gate valve | – | 750909 | F7366 10K300 | 380 | 445 | 400 | 16×Ф25 | 291.00 |
Attention please: The description may be different with the product, please contact us for quotation.
