Jacketed Gasket

Jacketed Gasket – High-Pressure, High-Temperature Metal Jacketed Sealing Solution

Product Overview

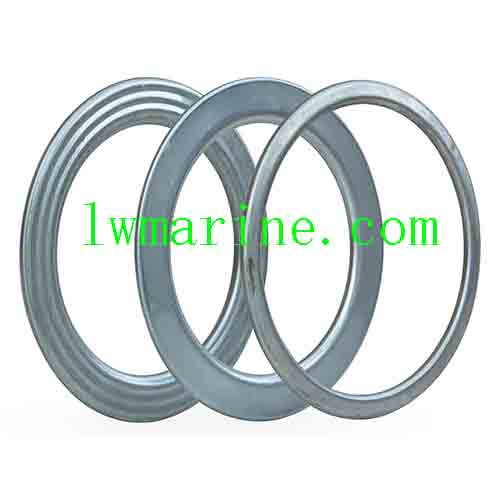

A Jacketed Gasket is a high-performance industrial sealing gasket designed for demanding applications in chemical processing, oil and gas, and power generation industries. This composite seal features a flexible non-metallic core—such as graphite, PTFE, or ceramic fiber—encased by a thin metal jacket (0.25–0.5 mm) using specialized cold-forming technology. Available in flat or corrugated jacket designs, it combines the resilience of soft filler materials with the durability and structural integrity of metal, making it ideal for heat exchangers, reactors, and non-circular flange connections.

Key Features & Benefits

Excellent Sealing Under Low Bolt Load: The soft core material compresses easily, creating a reliable seal with minimal flange pressure.
High Temperature & Pressure Resistance: Withstands extreme conditions (up to 1090°C and 250 BAR, depending on materials).
Corrosion-Resistant Construction: Metal jackets (stainless steel, titanium, Monel, etc.) protect against aggressive media including acids, steam, and solvents.
Customizable Shapes & Sizes: Can be manufactured in oval, square, ribbed, or complex geometries to fit unique flange layouts or heat exchanger tube patterns.
Durable & Non-Stick Surface: Metal jacket prevents gasket sticking, tearing, or flange damage during frequent maintenance or disassembly.
Wide Material Compatibility: Multiple core and jacket combinations available to meet specific thermal, chemical, and mechanical requirements.

Applications

Heat exchanger gaskets (shell-and-tube, floating head)
Reactor and pressure vessel manway seals
Boiler and steam system flanges
Chemical pump and valve sealing
Pipeline connectors in refineries and petrochemical plants

Material Combinations & Specifications

Core Material	Metal Jacket Options	Max Temp (°C)	Max Pressure (BAR)	Key Features & Applications
Expanded Graphite	304/316 Stainless Steel, Titanium	-220 to 550	250	Excellent thermal conductivity, ideal for heat exchangers and corrosive media
PTFE	Stainless Steel, Aluminum	-100 to 200	100	Superior chemical resistance for acid/alkali services
Expanded PTFE	Stainless Steel	-100 to 260	200	Enhanced temperature range with anti-creep properties
Non-Asbestos Fiber	Soft Iron, Brass, Stainless Steel	-100 to 350	100	General-purpose industrial and air tightness applications
Mica	Stainless Steel, Monel	-150 to 800	100	High-temperature steam or thermal oil services
Ceramic Fiber	Stainless Steel, High-Nickel Alloys	-200 to 1090	100	Extreme temperature environments (furnaces, exhaust systems)
