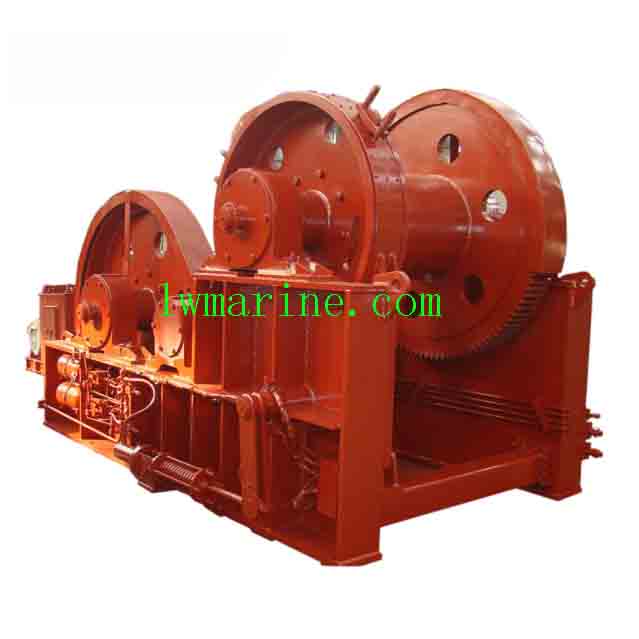

Hydraulic Dock Winches – Heavy-Duty Port & Marina Solution
Professional-Grade Docking Power
The Hydraulic Dock Winches is engineered for secure vessel handling in commercial ports, marinas, and shipyards. Utilizing high-pressure hydraulic power, this system delivers superior pulling force and precise control for docking operations with vessels of all sizes.
Key Applications
✔ Commercial Ports – Berthing large cargo vessels and tankers
✔ Marina Operations – Safe docking of yachts and pleasure craft
✔ Shipyard Services – Precise vessel positioning for maintenance
✔ Ferry Terminals – High-cycle docking/undocking operations
Technical Specifications
Core Components
✔ Heavy-Duty Hydraulic Drive – 40% more power than electric equivalents
✔ Marine-Grade Drum System – Corrosion-resistant rope/cable handling
✔ Fail-Safe Braking – Dual hydraulic/manual braking system
✔ Modular Construction – Aluminum/stainless/carbon steel composite
Performance Features
-
Precision Docking Control – Variable speed operation (±2cm accuracy)
-
All-Weather Reliability – Operates in -30°C to +60°C conditions
-
Low Maintenance Design – Sealed bearings and easy-access components
-
High Cycle Durability – Rated for 100,000+ operations
Control Options
-
Local Control Station – Heavy-duty waterproof panel
-
Wireless Remote – 150m operating range (IP68 rated)
-
Integration Ready – Compatible with dock automation systems
Certifications & Compliance
✔ BV, LR, RINA Certified
✔ ISO 9001 Manufacturing Standards
✔ OCIMF Mooring System Guidelines
Parameters:
| Rated Speed | Drum Capacity | Rated Pull | Motor Power | |
| m/min | φmm*m | T | kN | kW |
| ≥12 | φ8*100 | 0.5 | 5 | — |
| ≥12 | φ10*150 | 1 | 10 | 5.5 |
| ≥12 | φ15*150 | 2 | 20 | 11 |
| ≥12 | φ17*150 | 3 | 30 | 15 |
| ≥15 | φ8*150 | 4 | 40 | 22 |
| ≥15 | φ20.5*180 | 5 | 50 | 30 |
| ≥15 | φ26*200 | 7.5 | 75 | 45 |
| ≥15 | φ26*200 | 8 | 80 | 37 |
| ≥15 | φ30*200 | 10 | 100 | 45 |
The description/sizes may be different with goods, please check with us when order.
