Horizontal Marine Air Compressor – High-Efficiency, Air-Cooled, Medium Pressure
Product Overview

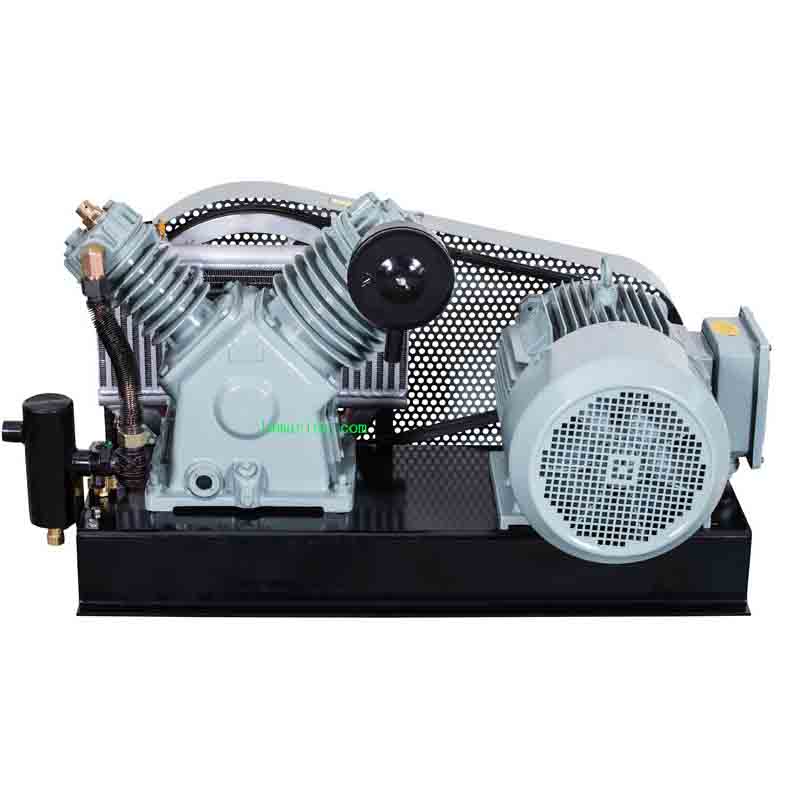

Our horizontal marine air compressor is a high-performance, air-cooled, two-stage piston compressor designed for reliable ship engine starting and powering medium-sized diesel engines. Engineered for smooth operation, low noise, and superior efficiency, this double-row, horizontal-type air compressor delivers a discharge pressure of 3.0 MPa (30 bar), making it ideal for marine and industrial applications.
Key Features & Benefits
✔ Smooth & Quiet Operation – Advanced design ensures minimal vibration and noise.
✔ High Efficiency – Optimized for energy-saving performance with low maintenance requirements.
✔ Marine-Grade Durability – Built to withstand harsh shipboard conditions with air-cooled technology for consistent cooling.
✔ Versatile Compatibility – Perfect for starting marine main engines and supporting medium-duty diesel engines.
Customizable Options (Upon Request)
-
Dual-machine control function for enhanced operational flexibility.
-
Temperature control system to prevent overheating.
-
Inlet pressure regulator for optimized airflow.
-
High-pressure exhaust hose for safe and efficient air delivery.
Technical Specifications
| Model | Displacement Capacity | Pressure (MPa) | Speed (r/min) | Motor Power (kW/HP) | Dimensions (L×W×H, mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 2ZF-0.34/30-B | 20.4 m³/h (0.34 m³/min) | 3.0 | 600 | 5.5 kW (7.5 HP) | 900×500×850 | 210 |
The description/sizes may be different with goods, please check with us when order.
