Electric Horizontal Capstans – Efficient Deck Handling Solution
Simplified Horizontal Capstan for Marine Mooring Operations

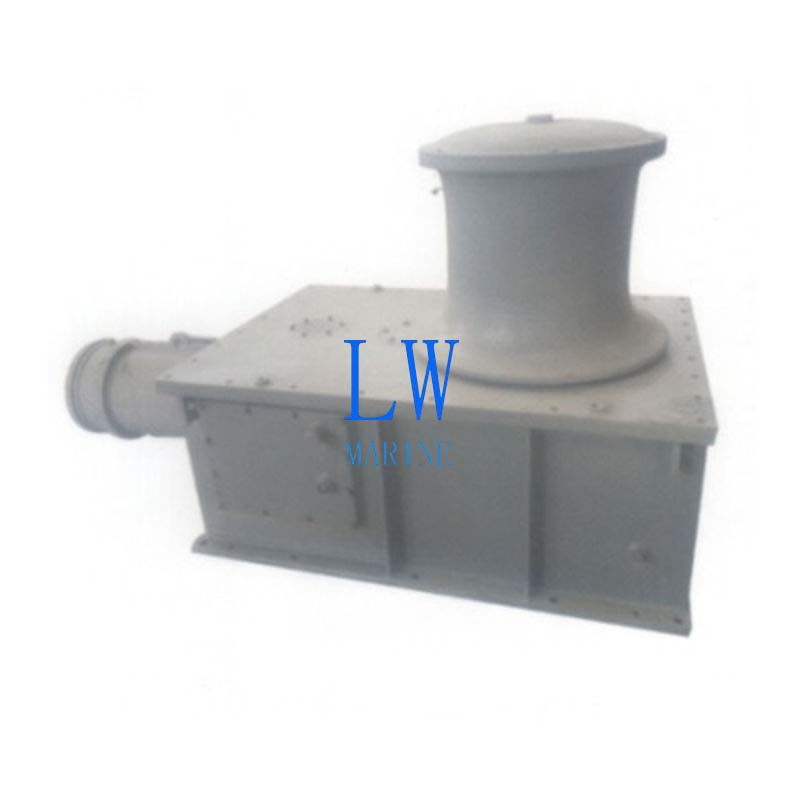

The Electric Horizontal Capstans is a compact, easy-to-operate deck machinery system designed for secure vessel mooring and line handling. Featuring a horizontal drum configuration and electric drive system, this capstan provides reliable performance with minimal maintenance requirements.
Technical Specifications
Core Components
✔ Horizontal Drum Assembly
-
316L stainless steel contact surfaces
-
Grooved design for optimal rope grip
-
Diameter: 300-600 mm
✔ Electric Drive System
-
Power range: 3-25 kW
-
IP56 protection rating
-
1/2/3-speed motor options
✔ Integrated Gearbox
-
Torque transmission within capstan head
-
Smooth power delivery
-
Low noise operation
Performance Data
| Parameter | Specification |
|---|---|
| Capacity Range | 10-40 kN |
| Rope Speed | 5-15 m/min |
| Rope Diameter | 12-28 mm |
| Power Supply | 380V/440V 50/60Hz |
Certifications & Compliance
✔ BV, LR, RINA Certified
✔ SOLAS Safety Standards
✔ IMO Marine Equipment Directive
Parameters:
| Working Load(KN) | Wire Dia.(mm) | Mooring Speed (m/min) | Motor power (kw) |
| 5 | φ11 | ≥18 | 3/1.2 |
| 10 | φ11 | ≥18 | 4.3/1.7 |
| 15 | φ13 | ≥18 | 8.5/3.5 |
| 20 | φ15 | ≥18 | 11/11/7.5 |
| 30 | φ17.5 | ≥18 | 16/16/11 |
| 50 | φ20.5 | ≥18 | 16/16/11 |
| 70 | φ26 | ≥15 | 22/22/11 |
| 100 | φ28 | ≥15 | 45/45/30 |
| 120 | φ32.5 | ≥15 | 60/60/45 |
| 150 | φ36.5 | ≥15 | 60/60/45 |
| 200 | φ40 | ≥15 | 75/75/36 |
| 250 | φ46 | ≥12 | 75/75/36 |
The description/sizes may be different with goods, please check with us when order.
