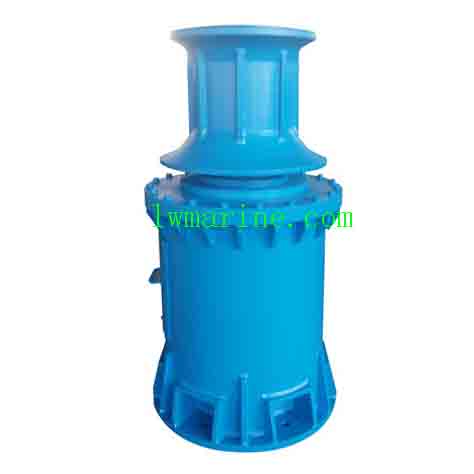

Marine Hydraulic Capstans
The Marine Hydraulic Capstans stand as a premier high-performance deck winching system, meticulously engineered for a wide array of marine tasks including anchoring, mooring, and load handling across diverse vessel types. Available in both vertical and horizontal configurations, this capstan offers precise stepless control powered by hydraulics, ensuring unparalleled operational flexibility and efficiency.
Key Applications for Enhanced Marine Performance
- Vessel Mooring: Secure and reliable port and starboard docking, ensuring stability in various port conditions.
- Anchor Handling: Efficient management of chains and ropes, facilitating quick and safe anchoring operations.
- Towing Operations: Precise auxiliary line control for safe and effective towing activities.
- Cargo Operations: Assistance in load positioning, enhancing cargo handling efficiency and safety.
Technical Specifications for Optimal Performance
Configuration Options
Vertical Capstan
- Deck-Penetrating Design: Features a drum above deck with the drive system positioned below, optimizing space utilization.
- 360° Operation: Provides omnidirectional line access, ideal for mixed rope/chain handling on smaller vessels.
Horizontal Capstan
- Full Above-Deck Installation: Requires no below-deck space, simplifying installation and maintenance.
- Directional Operation: Optimized for chain handling, making it perfect for dedicated anchor systems on large vessels.
Core Components for Reliable Functionality
- Hydraulic Drive System: Enables infinite speed adjustment, ensuring smooth and controlled operations.
- High-Torque Gearbox: Facilitates smooth power transmission, minimizing wear and tear.
- Marine-Grade Drum: Crafted from 316L stainless steel, offering superior corrosion resistance and durability.
- Fail-Safe Braking: Incorporates dual manual/hydraulic systems for enhanced safety and reliability.
Performance Features for Unmatched Efficiency
- Precision Control: Maintains ±1% speed accuracy under load, ensuring consistent and reliable performance.
- Corrosion Resistance: Features triple-layer marine coatings, protecting against harsh marine environments.
- Low Maintenance: Designed with easy-access service points, reducing downtime and maintenance costs.
- Safety Systems: Includes overload protection and an emergency stop function for added safety.
Certifications & Compliance for Peace of Mind
- BV, LR, IRS Certified: Meets international standards for quality and safety.
- SOLAS Safety Compliant: Adheres to the International Convention for the Safety of Life at Sea regulations.
- OCIMF Mooring Guidelines: Follows the Oil Companies International Marine Forum guidelines for mooring equipment.
Parameters for Detailed Specification Selection
| Type | Mooring Speed (m/min) | Working Load (KN) | Motor Capacity (KW) |
|---|---|---|---|
| 5KN | 15 | 5 | 3 |
| 10KN | 15 | 10 | 5.5 |
| … | … | … | … |
| 300KN | 9 | 300 | 90 |
30-1000Kn Hydraulic Mooring Capstan: Comprehensive Solution for Heavy-Duty Operations
Our hydraulic mooring capstan integrates marine wear-resistant anchor chains, stranded cable drums, brake belts, clutches, chain guide rollers, anchor chain cutters, low-speed heavy-duty hydraulic motors, plunger oil pumps, marine motors, electric control boxes, and manual ratio valves. This comprehensive setup ensures robust performance and reliability in the most demanding marine environments.
Technical Specifications for Heavy-Duty Capstans
| Working Load (KN) | Speed (m/min) | Wire Dia. (mm) | Power (KW) |
|---|---|---|---|
| 1000 | 10 | 86 | 200 |
| 900 | 10 | 82 | 160 |
| … | … | … | … |
| 30 | 18 | 16 | 15 |
Note: The description might be incorrect, please contact us for confirmation.
