Product Overview

  • Material: HMPE (High Modulus Polyethylene Fiber)

  • Density: 0.97g/cm³, Floating

  • Melting Point: 144-155℃

  • Elongation at Break: 3-4%

  • Abrasion Resistance: Excellent

  • UV Resistance: Excellent

  • Chemical Resistance: Excellent

  • Compliant with: OCIMF MEG4 specifications

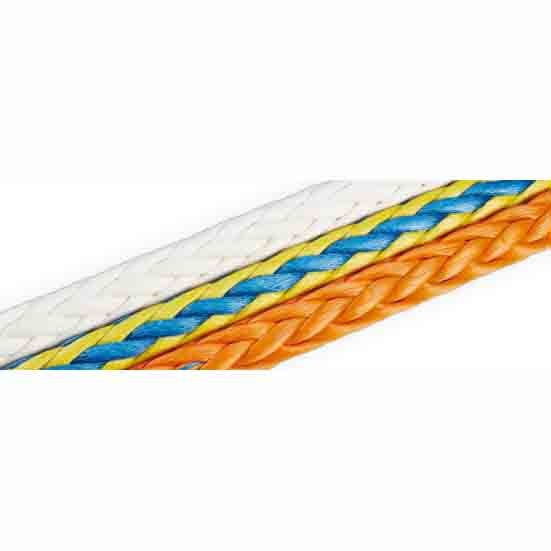

HMPE Rope is a rope made of High Modulus Polyethylene (HMPE) fiber. It is known for its high strength, light weight, low elongation, and low abrasion resistance. It is widely used for mooring, towing, and lifting applications.

Key Features

  • High strength and low weight: Strength is equal to steel wire rope of the same diameter, while it is only 1/8th the weight of steel.

  • Low elongation: 3-4% at break, comparable to steel wire rope.

  • Low water absorption: Excellent performance in marine environments. Resists moisture and maintains its strength.

  • Excellent chemical resistance: Resistant to most acids, alkalis, and solvents.

  • Compliant with OCIMF MEG4: Manufactured in compliance with the latest OCIMF MEG4 safety guidelines.

8-Strand and 12-Strand Performance Parameters (ISO MEG4)
Size (mm) Weight (kg/100m) Breaking Strength (ISO MEG4) (kN) Breaking Strength (ISO MEG4) (Ton) Breaking Strength (Low MEG4) (kN) Breaking Strength (Low MEG4) (Ton)
6 34 21.6 4.6 39 4.0 N/A N/A
8 61 40 8.8 71 7.3 N/A N/A
10 95 61 13.4 106 10.8 N/A N/A
12 137 87 19.1 152 15.5 N/A N/A
14 186 117 25.7 211 21.5 N/A N/A
16 249 151 33.2 267 27.2 N/A N/A
18 316 190 41.8 326 33.2 N/A N/A
20 392 229 49.9 394 39.2 N/A N/A
22 475 273 60.7 476 49.0 N/A N/A
24 567 318 70.4 564 57.4 N/A N/A
26 666 366 80.7 642 65.4 N/A N/A
28 772 416 91.8 728 74.1 N/A N/A
30 886 470 103.9 822 83.7 N/A N/A
32 1008 527 115.6 907 92.4 N/A N/A
34 1137 585 128.8 1004 102.2 N/A N/A
36 1276 646 142.0 1115 113.5 N/A N/A
38 1423 707 155.4 1228 124.9 N/A N/A
40 1577 771 169.3 1339 136.1 N/A N/A
42 1740 837 183.8 1461 148.5 N/A N/A
44 1910 905 198.6 1592 161.9 N/A N/A
46 2089 984 216.0 1732 176.0 N/A N/A
48 2276 1066 233.9 1881 191.2 N/A N/A
50 2471 1150 252.2 2038 207.2 N/A N/A
52 2674 1240 272.1 2205 224.1 N/A N/A
54 2885 1332 293.0 2381 242.0 N/A N/A
56 3104 1427 313.9 2567 260.9 N/A N/A
58 3331 1524 334.8 2762 280.7 N/A N/A
60 3567 1623 355.7 2968 301.6 N/A N/A
62 3811 1728 378.7 3183 323.4 N/A N/A
64 4063 1836 402.1 3407 346.2 N/A N/A
66 4324 1947 426.5 3641 370.1 N/A N/A
68 4594 2066 452.5 3885 394.9 N/A N/A
70 4874 2191 479.4 4137 420.4 N/A N/A
72 5166 2320 507.7 4402 447.3 N/A N/A
74 5470 2456 537.5 4676 475.3 N/A N/A
76 5787 2594 567.6 4960 504.1 N/A N/A
78 6115 2743 600.0 5254 533.9 N/A N/A
80 6456 2898 633.9 5558 564.8 N/A N/A
82 6812 3058 668.9 5872 596.7 N/A N/A
84 7184 3222 704.6 6197 629.8 N/A N/A
86 7568 3391 741.6 6532 663.7 N/A N/A
88 7965 3566 779.5 6877 698.8 N/A N/A
90 8377 3744 818.4 7232 735.0 N/A N/A
92 8804 3926 858.3 7597 772.1 N/A N/A
94 9246 4113 899.3 7974 810.3 N/A N/A
96 9704 4304 941.4 8360 849.5 N/A N/A
98 10178 4500 984.7 8758 889.9 N/A N/A
100 10669 4701 1029.3 9166 931.3 N/A N/A
102 11177 4907 1075.2 9585 974.1 N/A N/A
104 11703 5118 1122.4 10015 1017.8 N/A N/A
106 12248 5334 1171.0 10457 1062.6 N/A N/A
108 12811 5565 1221.1 10909 1108.7 N/A N/A
110 13395 5792 1272.6 11374 1155.8 N/A N/A
112 13999 6045 1325.9 11848 1204.0 N/A N/A
114 14623 6303 1380.6 12335 1253.5 N/A N/A
116 15268 6558 1436.5 12834 1304.1 N/A N/A
118 15934 6830 1494.2 13345 1356.0 N/A N/A
120 16622 7096 1553.2 13867 1409.1 N/A N/A

Note:

  • MBL = Minimum Breaking Load.

  • LDBF = Line Design Break Force per OCIMF MEG4 Appendix B.

  • Other sizes are available upon request.

Note: The description may be different with the product, please contact us for quotation.
