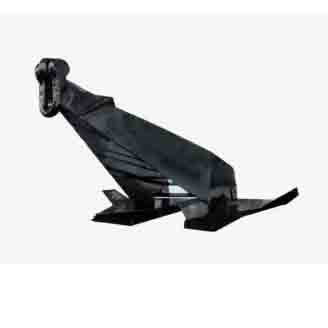

MK5 Super High-Holding Power Anchor (SHHP MK5)
Overview:
The MK5 Super High-Holding Power (SHHP) Anchor is an advanced anchor designed to deliver exceptional grip strength—providing over 4x the holding power of a standard stockless anchor of the same weight.
Key Benefits:
✔ Unmatched Holding Force – Ensures maximum security for large vessels, even in challenging conditions.
✔ Ideal for Large Ships – Supports smooth maneuvering during port departures, turns, and tight navigation.
✔ Enhanced Stability – Keeps vessels securely anchored in harsh weather and rough seas.
Perfect for ships requiring superior reliability and performance, the SHHP MK5 Anchor delivers the strength and stability you need.
Parameters:
| E | F | H | A | B | C | Nominal Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (KG) |
| 927 | 160 | 757 | 1828 | 1968 | 1101 | 300 |
| 1035 | 179 | 845 | 2040 | 2197 | 1233 | 500 |
| 1304 | 226 | 1064 | 2570 | 2770 | 1562 | 1000 |
| 1495 | 261 | 1230 | 2944 | 3174 | 1802 | 1500 |
| 1646 | 285 | 1343 | 3244 | 3494 | 1969 | 2000 |
| 1886 | 332 | 1540 | 3711 | 4001 | 2279 | 3000 |
| 2074 | 359 | 1692 | 4083 | 4403 | 2431 | 4000 |
| 2238 | 396 | 1835 | 4402 | 4746 | 2697 | 5000 |
| 2374 | 411 | 1988 | 4680 | 5040 | 2841 | 6000 |
| 2490 | 443 | 2045 | 4900 | 5280 | 3001 | 7000 |
| 2619 | 464 | 2139 | 5151 | 5553 | 3156 | 8000 |
| 2719 | 471 | 2219 | 5359 | 5772 | 3253 | 9000 |
| 3822 | 501 | 2305 | 5549 | 5932 | 3400 | 10000 |
| 3000 | 533 | 2450 | 5893 | 6353 | 3614 | 12000 |
| 3159 | 562 | 2580 | 6209 | 6694 | 3805 | 14000 |
| 3232 | 575 | 2640 | 6354 | 6850 | 3804 | 15000 |
| 3282 | 569 | 2673 | 6469 | 6967 | 3927 | 16000 |
| 3436 | 612 | 2806 | 6753 | 7280 | 4139 | 18000 |
| 3559 | 634 | 2907 | 6994 | 7540 | 4287 | 20000 |
| 3674 | 654 | 3001 | 7220 | 7784 | 4426 | 22000 |
| 3834 | 684 | 3132 | 7535 | 8123 | 4619 | 25000 |
| 4075 | 727 | 3329 | 8003 | 8635 | 4919 | 30000 |
The description/sizes may be different with goods, please check with us when order.
