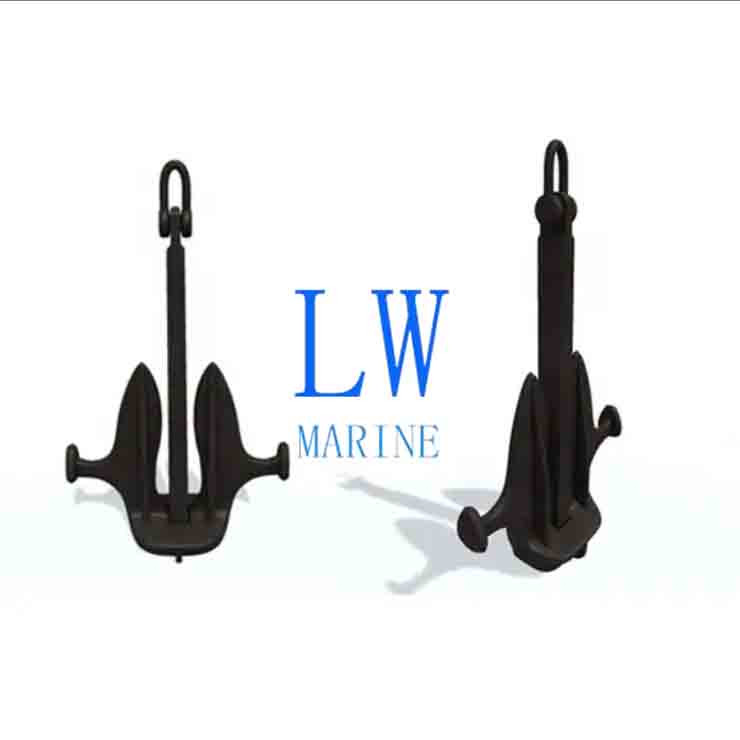

High Holding Power Matrosov Anchor
Description:
The High Holding Power Matrosov Anchor represents a superior class of high holding power anchors, distinguished by its wide, elongated fluke design that delivers exceptional stability and unmatched seabed penetration. As a professional marine anchor manufacturer, we offer comprehensive solutions including marine, yacht, and offshore anchors. Our products meet stringent international standards and come with certification options from major classification societies. We welcome inquiries and look forward to building lasting partnerships with global clients.
Technical Specifications:
-
Type: High Holding Power Anchor (Matrosov Type)
-
Construction Material: Grade A Cast Steel
-
Weight Range: 25kg – 1,500kg (standard/custom available)
-
Applications: Suitable for all vessel types
-
Certifications: CCS, ABS, LR, DNV, NK, BV, KR, RINA, RS
-
Packaging: Multiple options including cartons, plywood cases, pallets, or bare packing
Parameters:
| Size(mm) | Nominal Weight | |||||
| C | F | A | E | H | a | (kg) |
| 690 | 385 | 130 | 570 | 214 | 28~30 | 25 |
| 760 | 420 | 148 | 620 | 230 | 30~32 | 35 |
| 840 | 480 | 170 | 680 | 250 | 30~32 | 50 |
| 950 | 540 | 190 | 770 | 270 | 30~32 | 75 |
| 1060 | 590 | 210 | 830 | 290 | 30~32 | 100 |
| 1130 | 630 | 226 | 870 | 310 | 30~32 | 125 |
| 1190 | 670 | 242 | 910 | 330 | 30~32 | 150 |
| 1300 | 740 | 270 | 980 | 370 | 30~32 | 200 |
| 1380 | 800 | 294 | 1040 | 400 | 33~37 | 250 |
| 1480 | 850 | 312 | 1090 | 430 | 33~37 | 300 |
| 1630 | 930 | 342 | 1190 | 480 | 33~37 | 400 |
| 1750 | 1000 | 366 | 1280 | 520 | 33~37 | 500 |
| 1910 | 1090 | 400 | 1385 | 565 | 33~37 | 650 |
| 2000 | 1140 | 418 | 1450 | 590 | 33~37 | 750 |
| 2170 | 1240 | 452 | 1570 | 630 | 33~37 | 1000 |
| 2280 | 1300 | 488 | 1660 | 660 | 33~37 | 1250 |
| 2370 | 1350 | 515 | 1715 | 675 | 33~37 | 1500 |
The description/sizes may be different with goods, please check with us when order.
