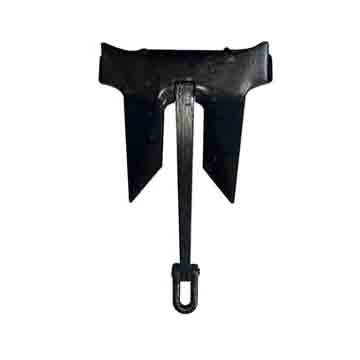

AC-14 HHP ANCHOR

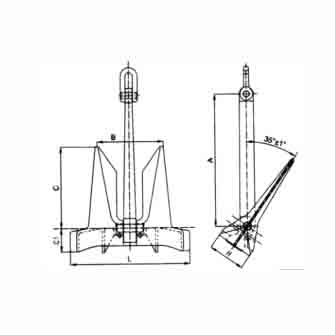

Dimensions (Part 1)
| NOMINAL WEIGHT (KG) | A | L | H | C |
|---|---|---|---|---|
| 30 | 491 | 440 | 136 | 299 |
| 45 | 590 | 529 | 164 | 359 |
| 75 | 677 | 605 | 188 | 411 |
| 94 | 718 | 643 | 199 | 437 |
| 113 | 745 | 666 | 207 | 452 |
| 135 | 821 | 737 | 228 | 500 |
| 180 | 904 | 811 | 251 | 550 |
| 225 | 974 | 874 | 270 | 593 |
| 270 | 1035 | 929 | 287 | 630 |
| 315 | 1090 | 978 | 302 | 663 |
| 360 | 1139 | 1022 | 316 | 694 |
| 428 | 1194 | 1071 | 331 | 727 |
| 495 | 1251 | 1122 | 347 | 762 |
| 585 | 1360 | 1221 | 378 | 828 |
| 675 | 1398 | 1254 | 387 | 851 |
| 765 | 1483 | 1304 | 404 | 885 |
| 855 | 1520 | 1363 | 423 | 925 |
| 968 | 1590 | 1425 | 440 | 968 |
| 1090 | 1631 | 1462 | 451 | 993 |
| 1193 | 1660 | 1490 | 465 | 1011 |
| 1305 | 1761 | 1580 | 488 | 1072 |
| 1440 | 1795 | 1610 | 497 | 1093 |
| 1575 | 1855 | 1665 | 514 | 1130 |
| 1710 | 1900 | 1705 | 526 | 1157 |
| 1845 | 1940 | 1741 | 538 | 1182 |
| 1990 | 1977 | 1774 | 548 | 1203 |
| 2138 | 2016 | 1809 | 559 | 1227 |
| 2295 | 2089 | 1874 | 579 | 1272 |
| 2475 | 2150 | 1929 | 596 | 1309 |
| 2655 | 2201 | 1975 | 610 | 1340 |
| 2835 | 2253 | 2022 | 624 | 1372 |
| 3038 | 2302 | 2066 | 638 | 1402 |
Dimensions (Part 2)
| NOMINAL WEIGHT (KG) | A | L | H | C | C1 | B |
|---|---|---|---|---|---|---|
| 3240 | 2352 | 2110 | 652 | 1432 | 407 | 1130 |
| 3443 | 2400 | 2154 | 665 | 1462 | 415 | 1154 |
| 3668 | 2451 | 2200 | 680 | 1493 | 424 | 1178 |
| 3938 | 2510 | 2252 | 696 | 1529 | 434 | 1207 |
| 4208 | 2549 | 2303 | 711 | 1563 | 444 | 1234 |
| 4500 | 2624 | 2355 | 727 | 1598 | 454 | 1261 |
| 4838 | 2688 | 2412 | 745 | 1637 | 465 | 1292 |
| 5175 | 2749 | 2467 | 762 | 1674 | 476 | 1321 |
| 5513 | 2808 | 2520 | 778 | 1710 | 486 | 1350 |
| 5850 | 2864 | 2570 | 794 | 1744 | 496 | 1376 |
| 6225 | 2923 | 2623 | 810 | 1780 | 506 | 1405 |
| 6525 | 2970 | 2665 | 823 | 1808 | 514 | 1428 |
| 6975 | 3042 | 2730 | 843 | 1853 | 527 | 1462 |
| 7425 | 3100 | 2782 | 859 | 1888 | 537 | 1490 |
| 7875 | 3162 | 2837 | 876 | 1925 | 547 | 1520 |
| 8325 | 3221 | 2890 | 893 | 1961 | 558 | 1548 |
| 8775 | 3278 | 2942 | 909 | 1996 | 567 | 1576 |
| 9225 | 3333 | 2991 | 924 | 2030 | 577 | 1602 |
| 9675 | 3386 | 3039 | 939 | 2062 | 586 | 1628 |
| 10125 | 3438 | 3085 | 953 | 2094 | 595 | 1653 |
| 10575 | 3488 | 3130 | 967 | 2124 | 604 | 1677 |
| 11025 | 3537 | 3174 | 981 | 2154 | 612 | 1700 |
| 11550 | 3592 | 3224 | 996 | 2188 | 622 | 1727 |
| 12075 | 3646 | 3272 | 1011 | 2220 | 631 | 1753 |
| 12675 | 3705 | 3325 | 1027 | 2256 | 641 | 1781 |
| 13350 | 3770 | 3383 | 1045 | 2296 | 653 | 1812 |
| 14100 | 3839 | 3445 | 1064 | 2338 | 665 | 1846 |
| 15000 | 3919 | 3517 | 1086 | 2387 | 678 | 1884 |
| 16125 | 4015 | 3603 | 1113 | 2445 | 695 | 1930 |
| 17250 | 4106 | 3685 | 1138 | 2501 | 711 | 1974 |
| 18375 | 4194 | 3763 | 1163 | 2554 | 726 | 2016 |
| 19500 | 4278 | 3839 | 1186 | 2605 | 740 | 2056 |
Note: The description may be different with the product, please contact us for quotation.
