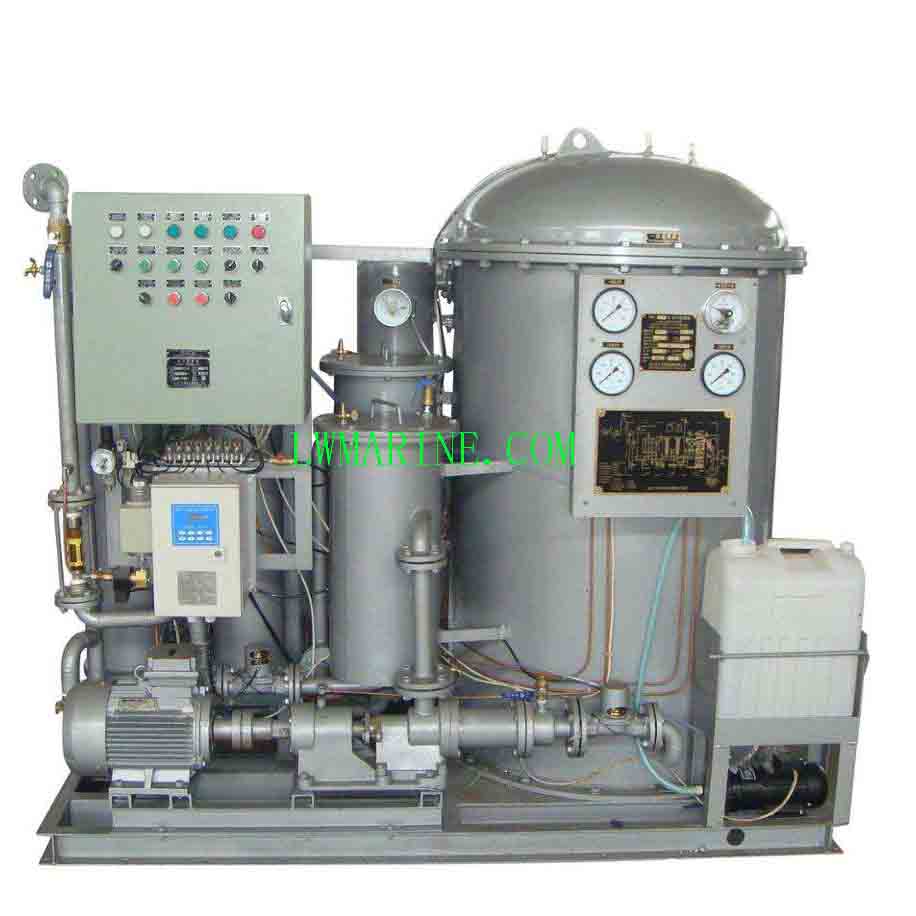

YWC Series Marine High Capacity Oily Water Separator – IMO MEPC.107(49) Certified 15ppm Oil Water Treatment System
Product Overview
Our YWC Series Marine High Capacity Oily Water Separator is an advanced oily water treatment system designed to process vessel bilge water to meet stringent international environmental standards. This comprehensive oil water separator plant ensures discharged water contains ≤15ppm oil content, achieving full compliance with IMO MEPC.107(49) regulations and MARPOL Annex I requirements. Engineered for reliability and efficiency, our system provides the optimal solution for responsible bilge water management onboard ships and offshore platforms.
Key Features & Benefits
-
✅ IMO MEPC.107(49) Certified System – Guarantees compliance with 15ppm bilge water discharge standards
-
✅ Three-Stage Separation Technology – Advanced combination of gravity separation, fiber filtration, and membrane permeation
-
✅ Vacuum Feeding System – Prevents emulsification through negative pressure suction for improved separation efficiency
-
✅ Fully Automated Operation – Integrated 15ppm oil content monitor and automatic diverter valve system
-
✅ Global Marine Approvals – Certified by CCS, BV, DNV, ABS, LR, GL, KR, RINA, and EC
-
✅ Low Maintenance Design – Easy-access components and standardized spare parts reduce downtime
Advanced Treatment Process
Stage 1: Gravity & Coalescing Separation
Bilge water enters the first-stage separator where vacuum pressure prevents emulsion formation. Hydrophilic cone plates facilitate oil coalescence, allowing free oil to rise through gravity separation.
Stage 2: Depth Filtration
Pre-treated water passes through specialized fiber filters that capture remaining oil particles and fine impurities through advanced adsorption technology.
Stage 3: Membrane Permeation
The integrated 15ppm oil content monitor continuously analyzes water quality. If oil levels exceed limits, water is automatically diverted to the third-stage membrane system for final purification. Non-compliant water is recirculated to the bilge tank via automated pneumatic valves.
Spare Parts & Maintenance
Ensure optimal performance with genuine replacement parts:
| NO. | Name | Quantity |
|---|---|---|
| 1 | Feeding Pump Grease Seal | 2 sets |
| 2 | Secondary Filter Element | 2 sets |
| 3 | Separator O-Ring | 1 piece |
| 4 | Filter O-Ring | 1 piece |
| 5 | Flange O-Ring | 8 pieces |
| 6 | Bilge Level Probe | 1 pc |
| 7 | Seawater Pre-Filter | 1 pc |
Certifications & Approvals
This marine bilge water separator holds type approvals from all major classification societies:
CCS | BV | DNV | ABS | LR | GL | KR | RINA | EC
The description/sizes may be different with goods, please check with us when order.
