HHP Matrosov Anchor
The Matrosov HHP Anchor is a premier high-holding-power (HHP) anchor, engineered to deliver exceptional performance in the most demanding marine and offshore applications. Recognized globally for its distinctive design and superior holding characteristics, this anchor is the preferred choice for vessels and offshore installations requiring reliable seabed engagement and resistance to dragging.
Manufactured from high-grade cast steel, our Matrosov anchors are built to withstand extreme operational stresses. Unlike fabricated anchors, the cast steel construction ensures a homogeneous grain structure, eliminating weak points and providing consistent strength throughout the anchor. This is critical for ensuring the anchor’s integrity during high-load events and in harsh seabed conditions.
Quality and safety are paramount. Every single anchor in our range undergoes rigorous non-destructive testing (NDT) , including ultrasonic testing (UT) to verify internal soundness and magnetic particle testing (MT) to detect any surface or near-surface discontinuities. This commitment to rigorous quality control guarantees that each anchor delivered meets the highest standards of operational reliability.
Key Features:
-
✔ High Holding-Power-to-Weight Ratio: The optimized design allows for superior seabed penetration and develops a very high holding power relative to its weight, often outperforming conventional anchors of the same mass.
-
✔ Optimized Design for Challenging Conditions: The Matrosov configuration provides exceptional stability during resetting and performs reliably across a wide variety of seabed types, from sand and mud to shingle.
-
✔ Rigorous Quality Control (UT & MT): Full traceability and defect-free construction ensured by 100% NDT inspection.
-
✔ High-Grade Cast Steel Construction: Ensures durability, impact resistance, and long-term performance in harsh marine environments.

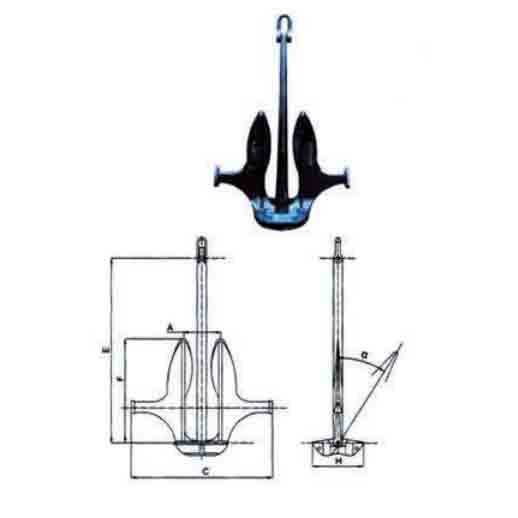

GB57-77 MATROSOV HHP ANCHOR
| Nominal Weight (KG) | A (mm) | E (mm) | C (mm) | F (mm) | H (mm) | a (mm) |
|---|---|---|---|---|---|---|
| 25 | 130 | 570 | 690 | 385 | 214 | 28~30 |
| 35 | 148 | 620 | 760 | 420 | 230 | 30~32 |
| 50 | 170 | 680 | 840 | 480 | 250 | 30~32 |
| 75 | 190 | 770 | 950 | 540 | 270 | 30~32 |
| 100 | 210 | 830 | 1060 | 590 | 290 | 30~32 |
| 125 | 226 | 870 | 1130 | 630 | 310 | 30~32 |
| 150 | 242 | 910 | 1190 | 670 | 330 | 30~32 |
| 200 | 270 | 980 | 1300 | 740 | 370 | 30~32 |
| 250 | 294 | 1040 | 1380 | 800 | 400 | 33~37 |
| 300 | 312 | 1090 | 1480 | 850 | 430 | 33~37 |
| 400 | 342 | 1190 | 1630 | 930 | 480 | 33~37 |
| 500 | 366 | 1280 | 1750 | 1000 | 520 | 33~37 |
| 650 | 400 | 1385 | 1910 | 1090 | 565 | 33~37 |
| 750 | 418 | 1450 | 2000 | 1140 | 590 | 33~37 |
| 1000 | 452 | 1570 | 2170 | 1240 | 630 | 33~37 |
| 1250 | 488 | 1660 | 2280 | 1300 | 660 | 33~37 |
| 1500 | 515 | 1715 | 2370 | 1350 | 675 | 33~37 |
Attention please: The description may be different with the goods, please contact us for confirmation.
