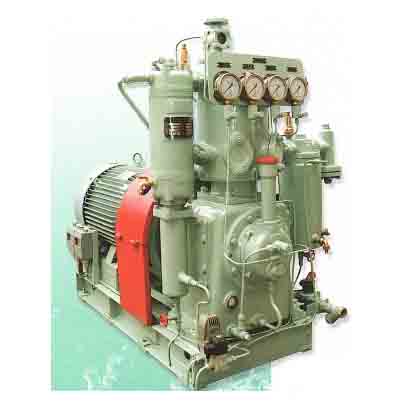

HC-64A Air Compressor
I. Application and Applicable Scope
This series of air compressors is mainly used for the starting of large and medium-sized ships and marine diesel engines, and can also serve as compressed air sources for other industrial sectors and pressure tests.
II. Structural Type and Characteristics
This series of air compressors is of vertical, water-cooled, and two-stage compression type, featuring perfect cooling, balanced pressure, and adjustable oil pump pressure. It can work reliably under specific ship conditions.
Note: The automatic control system can be equipped according to customer requirements, with self-control functions including automatic start, automatic stop, automatic unloading, low oil pressure alarm, and over-temperature ultra-high alarm, low water pressure alarm, etc.
III. Main Technical Parameters of HC-64A Air Compressor
| Compressor Model | HC-64A |
|---|---|
| Type | Vertical, water-cooled, two-stage compression |
| Number of Cylinders | 1 |
| Rated Pressure (MPa) | 3.0 |
| Rated Speed (r/min) | 730 / 870 / 960 |
| Volumetric Flow Rate (m³/h) | 54 / 65 / 72 |
| Shaft Power (kW) | 12.5 / 15.2 / 16.5 |
| Air Suction Method | Oil-immersed |
| Lubrication Method | Gear pump pressure lubrication |
| Crankcase Capacity (L) | 8 – 9 |
| Cooling Water Consumption (m³/h) | 1 – 1.4 |
| Crankshaft Rotation Direction | Counterclockwise (viewed from the flywheel end) |
| Drive Method | Direct drive |
| Unloading Method | Manual unloading or electromagnetic unloading |
| Motor | Y200L-8-H | Y225S-8-H | Y200L1-6-H |
|---|---|---|---|
| Rated Power (kW) | 15 | 18.5 | 18.5 |
| Rated Speed (r/min) | 730 | 870 | 960 |
| Voltage/Frequency (V/Hz) | 380/50 | 440/60 | 380/50 |
| Unit Outline Dimensions (mm) | 1470×1100×1270 | ||
| Unit Weight (kg) | ~700 |
Attention please: The description might be incorrect, please contact us for confirmation.
