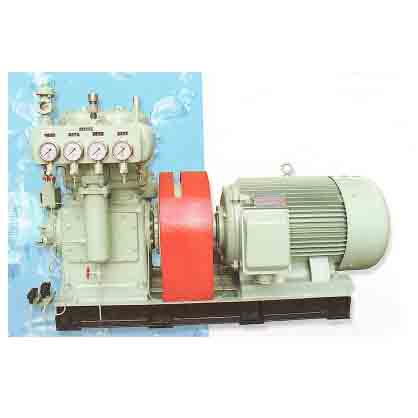

HC-264A Air Compressor
I. Application and Applicable Scope
This series of air compressors is primarily used for starting large and medium-sized ships and marine diesel engines, and can also serve as compressed air sources for other industrial sectors and pressure testing applications.
II. Structural Type and Characteristics
This series of air compressors adopts a vertical, water-cooled, two-stage compression design, featuring excellent cooling, balanced pressure, and adjustable oil pump pressure. It can operate reliably under specific ship conditions.
Note: The automatic control system can be configured according to customer requirements, with self-control functions including automatic start, automatic stop, automatic unloading, low oil pressure alarm, high-temperature ultra-high alarm, and low water pressure alarm.
III. Main Technical Parameters of HC-264A Air Compressor
| Compressor Model | HC-264A |
|---|---|
| Type | Vertical, water-cooled, two-stage compression |
| Number of Cylinders | 2 |
| Rated Pressure (MPa) | 3.0 |
| Rated Speed (r/min) | 730 / 870 / 980 |
| Volumetric Flow Rate (m³/h) | 110 / 130 / 145 |
| Shaft Power (kW) | 26 / 29 / 33 |
| Air Suction Method | Filter screen type |
| Lubrication Method | Gear pump pressure lubrication |
| Crankcase Capacity (L) | 15 – 17 |
| Cooling Water Consumption (m³/h) | 2 – 2.8 |
| Crankshaft Rotation Direction | Counterclockwise (viewed from the flywheel end) |
| Drive Method | Direct drive |
| Unloading Method | Solenoid valve unloading, manual unloading |
| Motor | Y250M-8-H | Y250M-8-H | Y250M-6-H |
|---|---|---|---|
| Rated Power (kW) | 30 | 30 | 37 |
| Rated Speed (r/min) | 730 | 870 | 980 |
| Voltage/Frequency (V/Hz) | 380/50 | 440/60 | 380/50 |
| Unit Outline Dimensions (mm) | 1870×1080×1155 | ||
| Unit Weight (kg) | ~1200 |
Attention please: The description might be incorrect, please contact us for confirmation.
