GRP WEATHERTIGHT DOOR
This product features a glass – fiber reinforced plastic (GRP) door leaf and a steel or stainless steel door frame, with excellent wind and rain resistance, suitable for outer doors of superstructures.
THE PRODUCT HAS GRP DOOR LEAF AND STEEL OR STAINLESS STEEL DOOR FRAME. AS WELL AS GOOD WEATHERTIGHTNESS, USED FOR OUTSIDE DOOR OF SUPERSTRUCTURE.

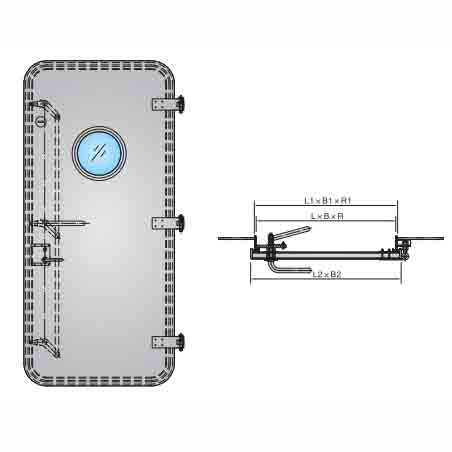

[Two diagrams: left is a front – view of the GRP weathertight door showing the door leaf with a window and the frame, labeled with dimensions L1×B1×R1, L×B×R, L2×B2; right is a top – view showing the door’s opening mechanism and dimensions.]
| Size of Doorway L×B | Size of B.H. Opening L1×B1 | Size of Door Leaf L2×B2 | Opening Direction | Weight (KG) | Optional Items |
|---|---|---|---|---|---|
| 1650X600 R100 | 1670X620 R110 | 1713X663 | Right – outer (RO) | 88 | Port light, Door closer, Door stopper |
| 1700X700 R100 | 1720X720 R110 | 1763X763 | 95 | ||
| 1750X750 R100 | 1770X770 R110 | 1813X813 | Left – outer (LO) | 101 | |
| 1800X800 R100 | 1820X820 R110 | 1863X863 | 107 |
Marking Example:
For a GRP weathertight door with a doorway size of 1700X700, right – outer opening: GRP Weathertight Door 1700X700 – RO JY015G – 00.
Attention please: The description might be incorrect, please contact us for confirmation.
