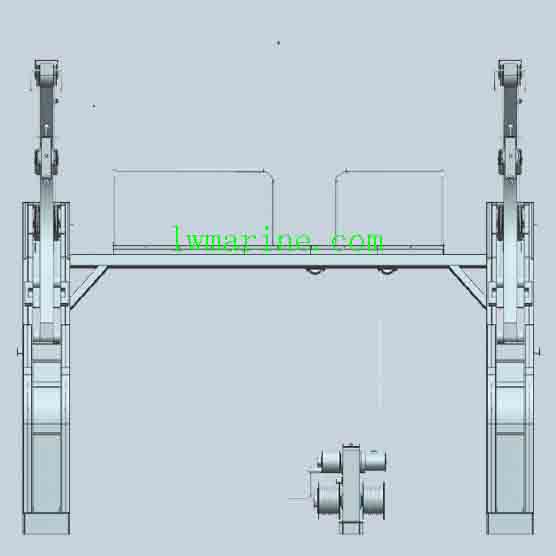

Gravity Sliding Type Davit

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

Gravity Sliding Type Davit | SOLAS-Compliant Lifeboat Launching System

Product Overview:
Our Gravity Sliding Type Davit is an advanced marine safety system designed for reliable and efficient lifeboat deployment and recovery. Utilizing gravity-powered lowering technology, this davit ensures swift and secure evacuation during maritime emergencies. Engineered to meet the latest international safety standards, it provides robust performance for various vessel types and operating conditions.

Key Features & Benefits:

  • Gravity-Powered Lowering System: Utilizes the boat’s own weight for smooth, controlled descent without external power requirements

  • Dual Control Operation: Features both remote control operation from inside the lifeboat and manual brake control on the deck for maximum operational flexibility

  • Rapid Continuous Deployment: Enables non-stop lowering to water surface within minimal time for emergency evacuation

  • Secure Fastening System: Integrated head and end fastening units prevent lifeboat swinging and ensure stability in rough sea conditions

  • Powerful Recovery Winch: Motorized winch system efficiently retrieves lifeboats with 2 persons or rescue boats with 6 persons back to boarding deck

  • Fail-Safe Design: Maintains operational capability even under challenging conditions

Technical Specifications:

Model Max Working Load (KN) Max Recovering Load (KN) Dimension A (mm) Dimension B (mm) Dimension H (mm) Total Weight (kg)
GS-75 75 42 3550 2900 6300 5300
GS-90 90 42 3270 2000 7340 5400
GS-120 120 60 3500 4340 8540 7900

Applications:
Ideal for commercial vessels, passenger ships, offshore platforms, and naval applications where reliable lifeboat deployment is critical for crew safety.

The description/sizes may be different with goods, please check with us when order.
