Fully Balanced HHP Anchor

Fully Balanced HHP Anchor

Certificate: CCS, GL and BV certificate.
Delivery Time: 15days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

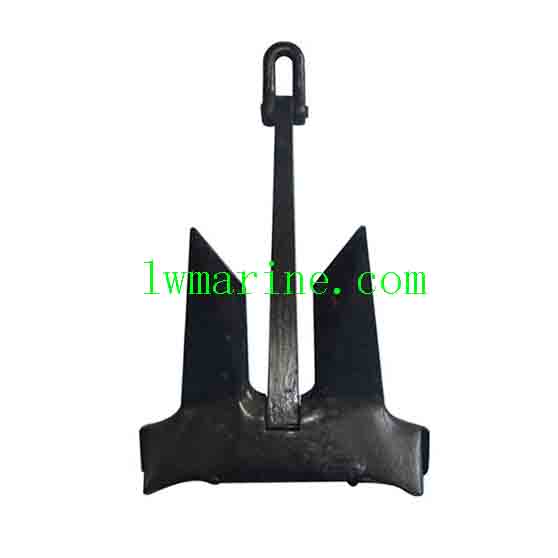

AC-14 Fully Balanced HHP Anchor – Superior Holding Power for Large Vessels

Engineered for Maximum Stability & Seabed Performance

The AC-14 Fully Balanced HHP Anchor is an advanced evolution of traditional stockless anchors, designed to deliver exceptional holding power for large ships. With its wide crown, thick flukes, and balanced design, it ensures rapid setting and unwavering stability in diverse seabed conditions.

Key Features & Benefits

✔ High Holding Power (HHP) Design – 3-4x stronger grip than standard stockless anchors
✔ Wide Crown & Long Flukes – Ensures deep penetration in sand, mud, and clay
✔ Fully Balanced Structure – Prevents tilting for consistent seabed engagement
✔ Heavy-Duty Construction – Made from high-strength ZG230-450 cast steel
✔ Bituminous Paint Finish – Extra corrosion protection for long-term durability

Technical Specifications

  • Type: Fully Balanced HHP Anchor
  • Material: ZG230-450 Cast Steel
  • Weight Range: 75kg – 100,000kg (customizable)
  • Finish: Bituminous paint (standard)
  • Packaging: Carton, Plywood Case, Plywood Pallet, or Nude Packing

  • Certifications: CCS, ABS, BV, LR, NK, RINA, and more

Parameters:

A B C D E F G J NOMINAL WEIGHT
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (KG)
550 326 350 606 188 185 115 24 75
607 380 385 704 207 200 130 28 100
635 380 402 704 217 215 145 32 120
742 442 470 822 254 252 160 36 180
828 495 525 915 283 277 175 40 225
828 495 525 915 283 280 192 40 250
882 525 559 975 301 298 192 45 300
918 548 582 1015 313 310 215 48 340
918 548 582 1015 313 313 215 48 360
990 590 628 1098 339 336 215 48 430
1025 610 650 1135 350 348 235 50 495
1102 658 699 1220 376 375 235 50 585
1152 690 731 1278 394 390 255 60 675
1205 718 764 1335 411 408 255 60 765
1250 745 793 1385 427 420 280 62 855
1300 775 826 1445 444 440 280 62 970
1350 805 855 1495 461 455 280 62 1080
1400 835 887 1545 478 470 310 68 1200
1440 858 913 1595 492 485 310 68 1305
1486 885 943 1645 507 505 310 68 1440
1534 915 972 1695 523 518 340 74 1575
1575 940 998 1745 538 532 340 74 1710
1616 965 1025 1785 552 546 340 74 1845
1650 985 1048 1830 564 560 380 82 1980
1686 1005 1070 1865 575 570 380 82 2100
1738 1035 1102 1920 593 588 380 82 2295
1780 1062 1128 1970 607 602 385 82 2475
1820 1085 1155 2018 621 615 385 82 2655
1862 1109 1180 2057 635 625 410 90 2835
1896 1130 1204 2100 646 640 410 90 3040
2030 1198 1287 2225 693 680 415 100 3550
2080 1240 1318 2300 709 705 450 100 3940
2170 1295 1376 2405 741 735 450 100 4500
2225 1330 1410 2465 760 755 480 110 4840
2275 1358 1443 2520 777 770 480 110 5175
2339 1396 1483 2590 798 790 500 110 5610
2390 1426 1515 2646 816 810 500 110 6000
2420 1443 1534 2678 826 820 540 117 6225
2450 1462 1554 2712 836 830 540 117 6525
2507 1496 1589 2775 855 848 580 121 6975
2560 1526 1622 2832 873 866 580 121 7350
2610 1558 1655 2890 891 884 600 130 7875
2665 1590 1689 2950 909 902 600 130 8325
2707 1614 1715 2996 924 916 630 135 8775
2765 1652 1754 3064 945 936 640 140 9300
2805 1674 1778 3104 957 948 640 140 9675
2850 1700 1806 3152 972 960 640 140 10125
2880 1720 1827 3192 984 976 660 145 10575
2930 1750 1859 3247 1001 990 660 145 11025
2987 1782 1894 3308 1019 1010 700 155 11700
3010 1800 1906 3343 1027 1020 700 155 12075
3065 1812 1945 3364 1047 1028 700 155 12675
3132 1870 1986 3470 1069 1060 700 155 13350
3178 1896 2015 3520 1084 1076 730 160 14100
3228 1924 2045 3570 1099 1090 730 160 14700
3272 1954 2075 3626 1117 1108 770 170 15400
3320 1980 2110 3680 1132 1125 770 170 16100
3350 2000 2126 3720 1144 1144 770 170 16900
3380 2016 2142 3740 1151 1144 770 170 17250
3440 2050 2180 3806 1173 1162 800 180 17800
3500 2088 2220 3875 1193 1185 800 180 18800
3573 2132 2265 3956 1220 1210 820 185 20000
4100 2437 2600 4577 1399 1375 880 200 25000
4358 2888 2765 4663 1484 1380 940 210 30000
4588 3040 2910 4910 1560 1453 940 210 35000
4794 3177 3041 5129 1632 1518 960 220 40000
4988 3304 3163 5334 1698 1579 1015 225 45000
5164 3422 3276 5526 1758 1635 1050 230 50000
5330 3532 3382 5703 1815 1688 1080 240 55000
5490 3639 3483 5875 1870 1739 1136 250 60000
5639 3737 3578 6033 1920 1785 1156 255 65000
5778 3829 3666 6183 1968 1830 1188 260 70000
5914 3919 3752 6328 2014 1873 1210 265 75000
6044 4005 3835 6468 2058 1914 1235 270 80000
6166 4086 3912 6598 2100 1953 1258 280 85000
6284 4164 3987 6724 2140 1990 1258 280 90000
6398 4240 4059 6845 2178 2025 1300 285 95000
6506 4312 4128 6962 2216 2060 1403 310 100000

The description/sizes may be different with goods, please check with us when order.
