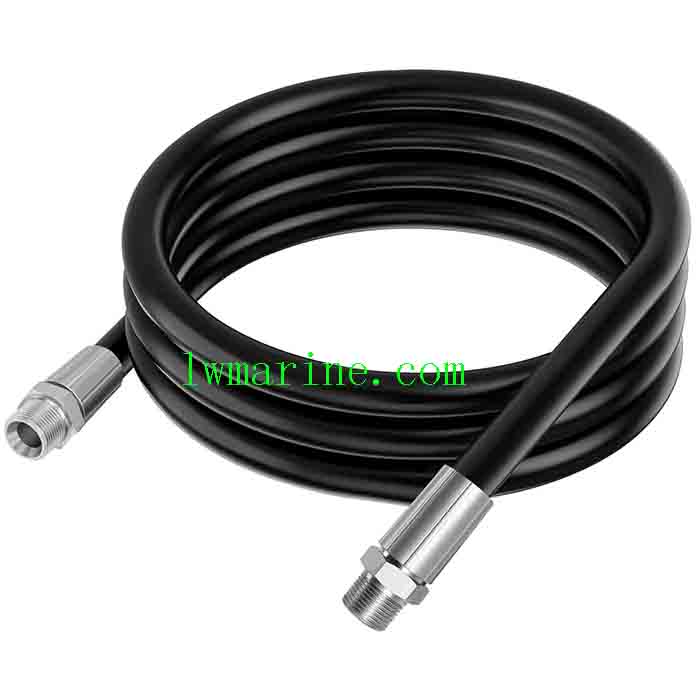

Fuel and Oil Transfer Hoses

Fuel and Oil Transfer Hoses

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

Fuel and Oil Transfer Hoses for Industrial and Automotive Applications

Product Overview

Our premium Light Duty Fuel and Oil Hoses are engineered for superior performance and durability in demanding environments. Constructed with a multi-layer design of high-grade polypropylene fabric and film, these hoses feature a robust, weatherproof, and abrasion-resistant outer cover for maximum service life. Internal and external galvanized steel wire helices provide critical structural integrity and collapse resistance, ensuring consistent flow and reliable operation. Through advanced computer-aided design, we achieve an exceptional strength-to-weight ratio combined with extreme flexibility, offering unmatched handling and ease of use for operators. This ergonomic design promotes workplace efficiency and safe handling practices. We specialize in manufacturing certified oil and fuel transfer solutions, including industrial suction hoses and professional-grade PVC suction hose pipes.

All our light duty fuel lines and oil transfer hoses are rigorously tested and comply with major international standards, including EN 13765, BS 3492 AX + BX, and BS5842. We offer custom factory-fitted end connections tailored to your specific equipment and application requirements.

Primary Applications

Ideal for the safe and efficient transfer of a wide range of hydrocarbons, including:

  • Petrol and Diesel Fuel

  • Lubricating Oils

  • Hydraulic Oils

  • Kerosene (Paraffin)

  • 100% Aromatics

Robust Construction & Materials

  • Inner Wire: Galvanized Steel (for vacuum resistance)

  • Lining: Chemically Resistant Polypropylene

  • Outer Cover: Durable, PVC-Coated Polyester (Blue)

  • Reinforcement: External Galvanized Steel Wire Helix

Key Physical Properties & Performance Data

  • Proof Pressure: 1.5 x Maximum Working Pressure

  • Vacuum Range: Up to 0.9 bar

  • Temperature Range: -30°C to +80°C

  • Minimum Burst Pressure: 4:1 Safety Factor

  • Maximum Elongation: < 10%

  • Maximum Twist: < 10 degrees/meter

  • Electrical Resistance: < 10 ohm (for static dissipation)

Detailed Specifications Chart

Nominal Diameter Max. Working Pressure Min. Bend Radius Weight Standard Length
Inches (mm) PSI (Bar) Inches (mm) Ft (m)
1″ (25mm) 100 (7 Bar) 4.90″ (125mm) 0.65 lbs/ft 65 ft (20m)
1.5″ (40mm) 100 (7 Bar) 4.90″ (125mm) 0.85 lbs/ft 65 ft (20m)
2″ (50mm) 100 (7 Bar) 5.90″ (150mm) 0.95 lbs/ft 65 ft (20m)
2.5″ (65mm) 100 (7 Bar) 5.90″ (150mm) 1.20 lbs/ft 65 ft (20m)
3″ (80mm) 100 (7 Bar) 9.85″ (250mm) 1.70 lbs/ft 65 ft (20m)
4″ (100mm) 100 (7 Bar) 11.80″ (300mm) 2.30 lbs/ft 65 ft (20m)

The description/sizes may be different with goods, please check with us when order.
