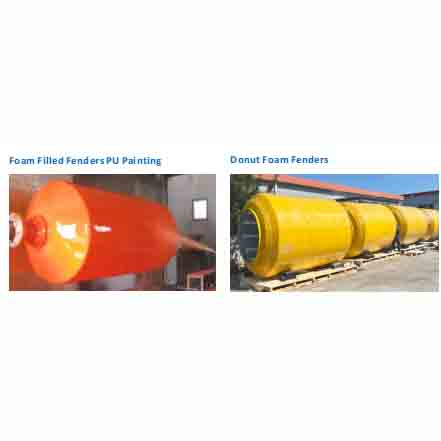

Foam Filled Fenders
General
Foam filled fender is the tough heavy-duty, and unsinkable floating fenders system used for the harbor, offshore and ship-to-ship operation. Netted foam fenders are designed with the chain and tire net. Netless foam fenders are without net protection.
Features and Advantages
-
Unsinkable foam core: 100% closed cell foam, even the skin was punctured, it also is unsinkable without absorbing water.
-
High energy absorption, low reaction force: We have various density foam core. It has higher performance than pneumatic fenders and other rubber fenders system.
-
Strong and tough skin: Spray the polyurethane elastomer on the skin, reinforced with nylon filament at optimum angle.
-
Vulcanized rubber skin: We also make the rubber skin, reinforced with nylon to provide the better abrasion resistance.
Standard Capacity Parameters (Metric)
| Diameter x Length (mm) | Energy Absorption at 60% compression (kN·m) | Reaction Force at 60% compression (kN) |
|---|---|---|
| 700 x 1500 | 19 | 30 |
| 1000 x 1500 | 35 | 39 |
| 1000 x 2000 | 50 | 57 |
| 1200 x 2000 | 67 | 63 |
| 1350 x 2500 | 112 | 94 |
| 1500 x 3000 | 171 | 130 |
| 1700 x 3000 | 208 | 139 |
| 2000 x 3500 | 335 | 190 |
| 2000 x 4000 | 398 | 226 |
| 2000 x 4500 | 460 | 261 |
| 2500 x 4000 | 591 | 269 |
| 2500 x 5500 | 885 | 402 |
| 3000 x 6000 | 1365 | 389 |
| 3300 x 4500 | 1105 | 380 |
| 3300 x 6500 | 1786 | 614 |
Note: Other sizes and performance available upon request.
Donut Foam Filled Fenders
General
(Diagram and construction features shown in the source image)
-
Outer Skin: Tough polyurethane elastomer outer skin, with nylon filament reinforced. For added strength, the thick skin is reinforced with nylon.
-
Foam Core: High-performance and quality closed-cell foam, combined with special laminating process, ensures the integrity of the fender core.
-
Inner Steel Tube: Controlled steel tube resists mooring load and provides a stable, non-abrasive core for the foam body.
-
UHMW PE Pads: Low-friction UHMW bearing pads, minimal maintenance. It can help the float to freely rotate around a pile, and falls with water level.
Donut Foam Filled Fenders Technical Specifications
| Outer Diameter (mm) | Inner Diameter (mm) | Height (mm) | Energy Absorption (kJ) | Reaction Force (kN) | Energy Absorption (kJ) | Reaction Force (kN) |
|---|---|---|---|---|---|---|
| 500 | 150 | 200 | 2.5 | 72 | 2.6 | 76 |
| 1000 | 300 | 500 | 9.2 | 150 | 7.2 | 149 |
| 1200 | 350 | 800 | 12.1 | 184 | 12.0 | 186 |
| 1500 | 500 | 1000 | 18.0 | 270 | 20.0 | 290 |
| 1700 | 500 | 1200 | 34 | 330 | 32 | 330 |
| 2100 | 700 | 1300 | 45 | 405 | 45 | 410 |
| 2300 | 700 | 1100 | 48 | 430 | 51 | 480 |
| 2500 | 750 | 1200 | 59 | 530 | 62 | 550 |
| 2500 | 800 | 1400 | 66 | 570 | 71 | 590 |
| 2800 | 900 | 1300 | 70 | 540 | 73 | 560 |
| 2800 | 1000 | 1300 | 68 | 530 | 72 | 560 |
| 3000 | 1000 | 1200 | 70 | 510 | 81 | 580 |
| 3200 | 1100 | 1300 | 78 | 540 | 86 | 590 |
| 3300 | 1100 | 1400 | 89 | 650 | 100 | 710 |
| 3500 | 1100 | 1500 | 100 | 740 | 110 | 800 |
| 3600 | 1100 | 1600 | 125 | 910 | 140 | 1040 |
Note: The description may be different with the product, please contact us for quotation.
